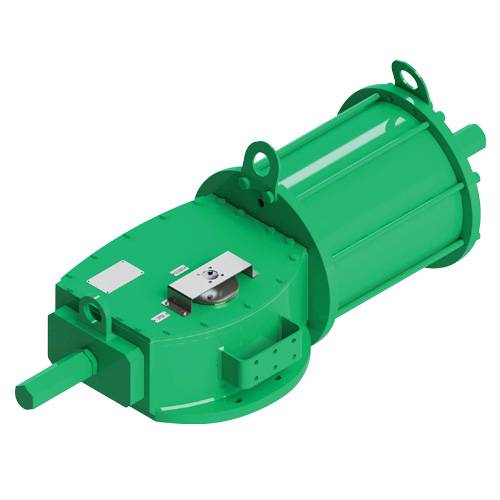

碳钢材质GD型重载荷双效气动执行器

技术特色
碳钢材质GD型重载荷双效气动执行器
宏 气动执行器
小类 Heavy Duty的碳钢执行器
申请详细信息
打印页面
  • 优点
  • 特性
  • 物料
  • 图表和起动扭矩
  • 规格
  • 附件
  • 文档
碳钢材质GD型重载荷双效气动执行器 - 优点 -

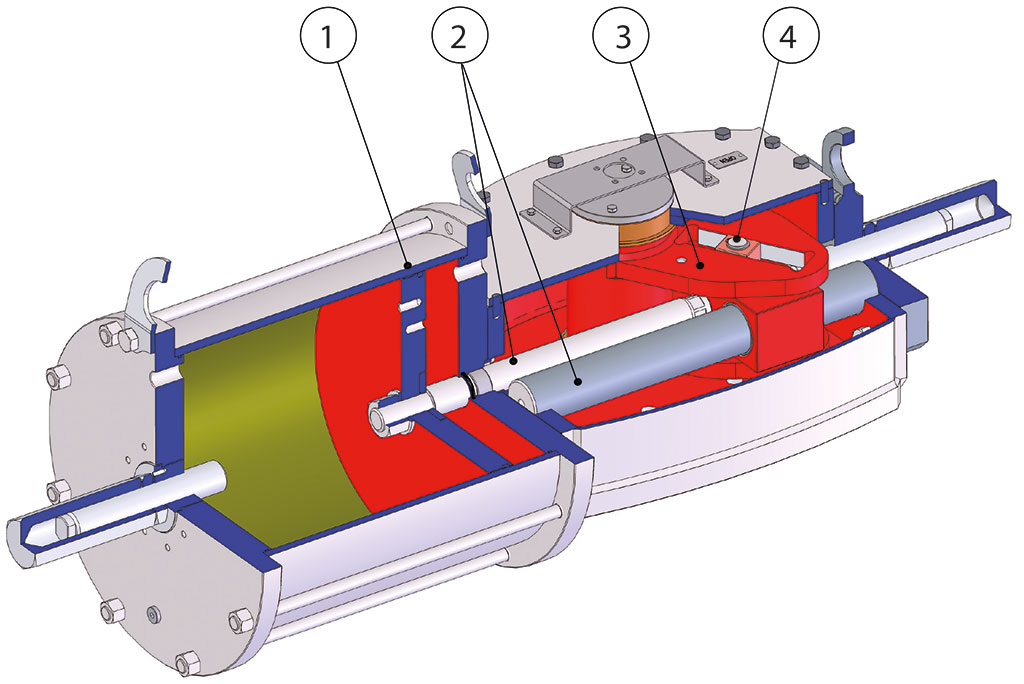

1 碳石墨填料PTFE制造的滑动带
降低活塞与缸筒之间的摩擦力；
即便长期停用，亦可避免密封件与缸筒发生粘连。
减弱“粘滑”（stick-slip）效应。

2 传动轴和引导杆采用硬度超过200 HB的镀铬钢材质制成
更强的耐腐蚀性能
降低传动轴、引导杆和滑套之间的摩擦力，从而减少组件磨损

3.与执行器控制流分离，将线性运动转换为旋转运动的动力转换系统。
可使用高科技气体驱动执行器
避免爆炸环境

4 滚动摩擦的十字滑块(通过无传动系统将线性运动转换为旋转运动)
活塞和传动轴之间的摩擦力更小，减少零部件磨损
打开和关闭时有着更强的起动扭矩

黄铜衬套
相较于其他材料的衬套，黄铜材料可以降低磨损

ATEX Compliance
可安装于潜在易爆的环境内

最高达SIL3等级的认证
更高的运行安全等级

技术参数：
额定扭矩：2,000Nm至30,000Nm
法兰标准：DIN/ISO 5211，DIN 3337
Rotation angle: 100° (-5°, +95°).
Double adjusting +5° and -5° for each end position (0° and 90°).
供应压力：3bar至8.5bar（输出扭矩参见表格）
双效型号的起动扭矩与执行器的供应压力成正比
单效型号在返回时的起动扭矩（执行器未供应时）仅取决于弹簧的运动，与供应压力无关
可用配置：双效，弹簧返回常闭(NC)，弹簧返回常开(NO)

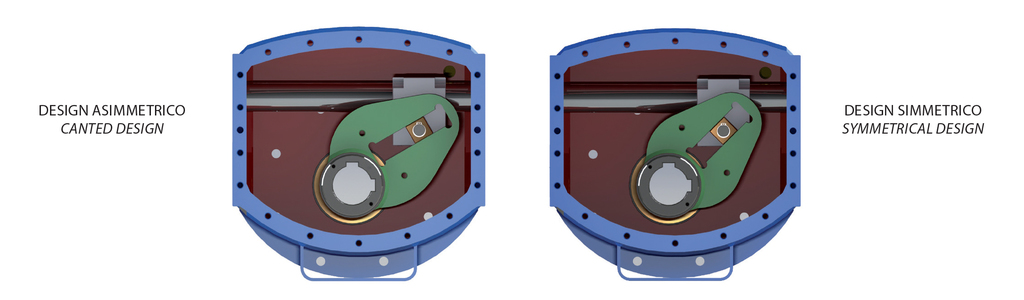

中央阀体配置：对称或非对称十字滑块

运行条件：
温度范围：标准型号：-20℃~+80℃（密封件材质：NBR）
流体源：无需润滑且经过滤的压缩空气，惰性气体，高技术气体
温度低于0℃时，请使用干燥空气
如果需要润滑，建议使用与所用执行器类型的内部材料兼容的非洗涤剂油

设计准则：
满足EN 15714-3、ISO 5211、ISO 12490

碳钢材质GD型重载荷双效气动执行器 - 物料 -

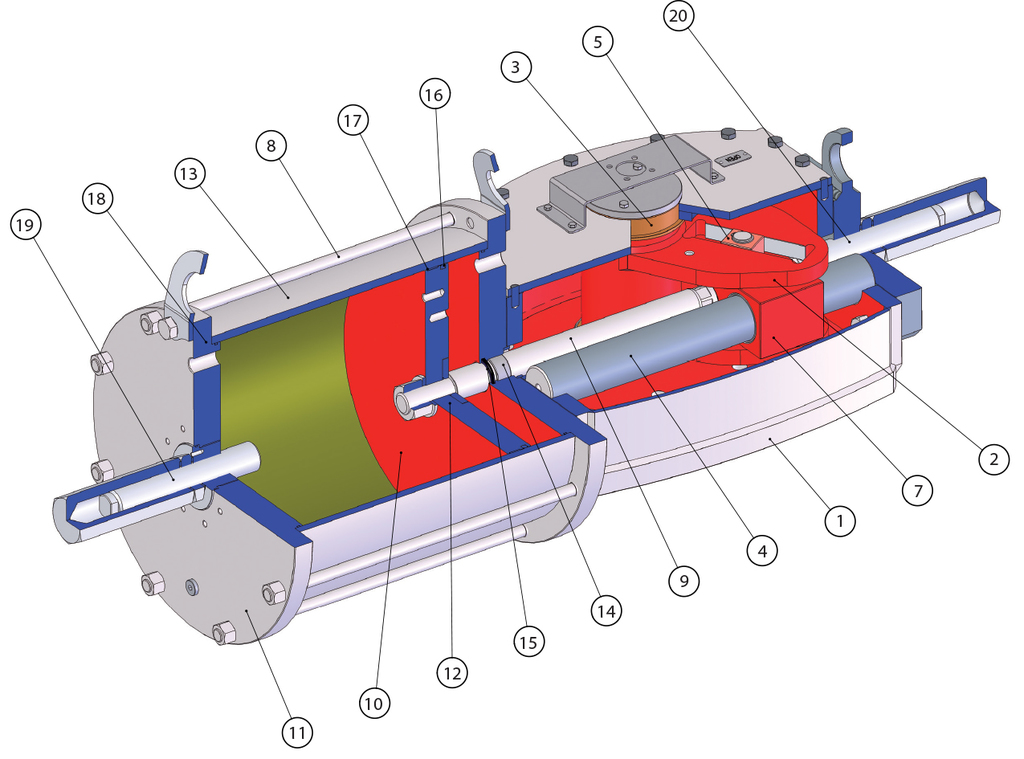

位置介绍材质
1中央阀体
碳钢
2十字滑块
碳钢
3十字滑块衬套
青铜
4引导杆
合金钢（镀铬)
5滑动轴承
青铜
6抽气阀（未绘出)黄铜
7导轨锁
碳钢
8双头螺栓
合金钢
9活塞杆
合金钢（镀铬)
10活塞
碳钢
11法兰
碳钢
12O 形圈
Nitrilic rubber
13缸筒
碳钢（镀镍)
14活塞杆衬套
钢+青铜+PTFE
15密封件
NBR+聚氨酯
16O 形圈
Nitrilic rubber
17滑动环PTFE + 石墨
18O 形圈
Nitrilic rubber
19调整螺柱合金钢
20调整螺柱
合金钢

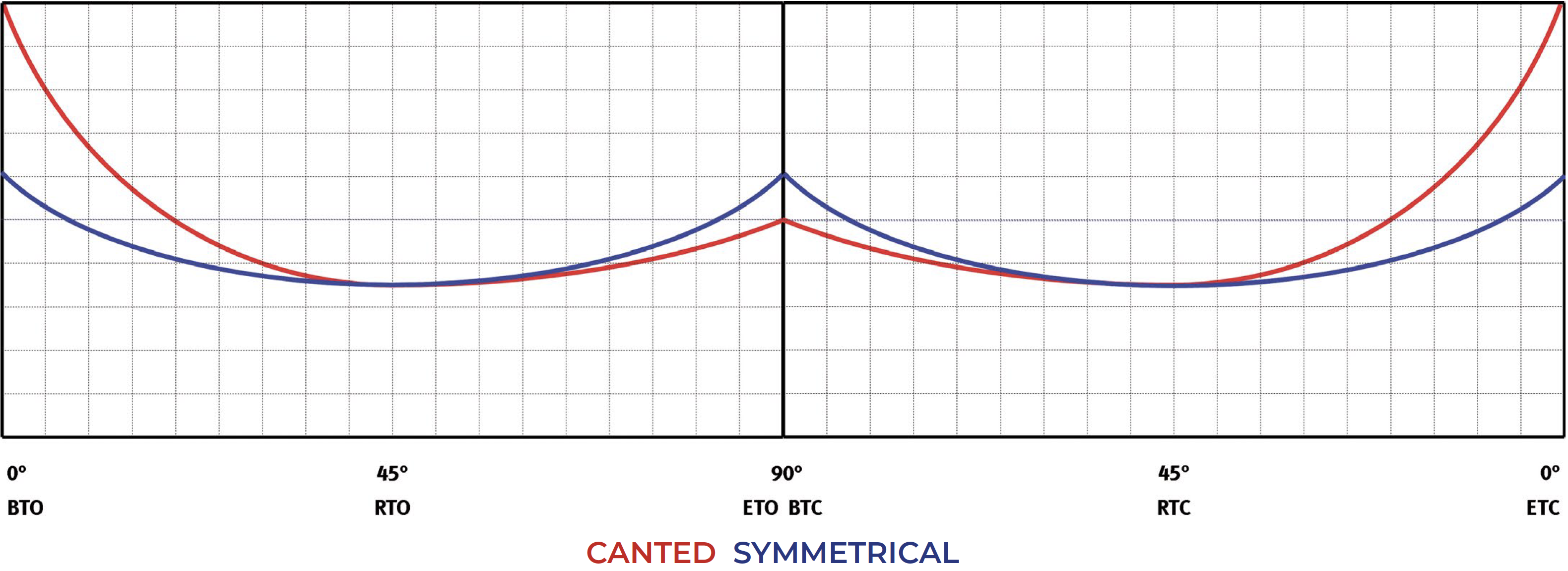

双效 - 扭矩图表（起动扭矩)

碳钢材质GD型重载荷双效气动执行器 - 图表和起动扭矩 - 双效 - 扭矩图表（起动扭矩)

型号
最大扭矩 Nm
3 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0002.3279081.2891.2298952.528
GHDP-085C-280A-D19.0003.3041.2901.8301.7541.2783.607
GHDP-085C-335A-D19.0004.7301.8472.6202.5131.8305.167
GHDP-085C-385A-D19.0006.2692.4483.4723.3402.4336.867
GHDP-085C-435A-D19.0008.0303.1354.4484.2863.1228.812
GHDP-100C-335A-D118.0005.6372.2293.1222.9952.2386.157
GHDP-100C-385A-D118.0007.4712.9554.1383.9802.9748.183
GHDP-100C-435A-D118.0009.5703.7855.3005.1073.81610.502
GHDP-100C-485A-D118.00011.8964.7056.5896.3574.75013.071
GHDP-100C-535A-D118.00014.4415.6657.9217.6645.62515.794
GHDP-130C-385A-D132.0009.8083.8305.4335.2123.79710.715
GHDP-130C-435A-D132.00012.5644.9066.9606.6774.86413.728
GHDP-130C-485A-D132.00015.6186.0988.6518.3196.06017.102
GHDP-130C-535A-D132.00019.0697.44610.56310.1737.41020.914
GHDP-130C-585A-D132.00022.8778.93312.67212.2198.90125.121
GHDP-130C-635A-D132.00027.04610.56114.98214.45910.53329.725


型号
最大扭矩 Nm3 BAR 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0001.4829201.6201.4579061.593
GHDP-085S-280A-D19.0002.1041.3062.3002.0791.2932.273
GHDP-085S-335A-D19.0003.0121.8703.2932.9791.8523.  256
GHDP-085S-385A-D19.0003.9922.4784.3643.9592.4624.327
GHDP-085S-435A-D19.0005.1143.1745.5905.0803.1605.553
GHDP-100S-335A-D118.0003.5852.2253.9183.5322.1973.861
GHDP-100S-385A-D118.0004.7512.9495.1934.6992.9225.136
GHDP-100S-435A-D118.0006.0863.7786.6526.0203.7446.580
GHDP-100S-485A-D118.0007.5654.6968.2697.4994.6648.197
GHDP-100S-535A-D118.0009.1725.73210.1169.1075.69210.044
GHDP-100S-585A-D118.00010.9666.85412.09510.9016.81312.024
GHDP-130S-385A-D132.0006.2473.8776.8286.1783.8426.753
GHDP-130S-435A-D132.0008.0024.9678.7467.9154.9228.651
GHDP-130S-485A-D132.0009.9476.17410.8739.8606.13210.777
GHDP-130S-535A-D132.00012.1457.53913.27512.0587.49913.180
GHDP-130S-585A-D132.00014.5709.04415.92614.4839.00815.831
GHDP-130S-635A-D132.00017.22510.69218.82817.13810.65918.733

型号最大扭矩 Nm3,5 BAR 对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0002.7251.0641.5091.4391.0482.960
GHDP-085C-280A-D19.0003.8681.5102.1432.0541.4964.223
GHDP-085C-335A-D19.0005.5372.1623.0672.9422.1436.049
GHDP-085C-385A-D19.0007.3352.8644.0633.9082.8478.035
GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.0006.5892.5733.6503.4892.5417.173
GHDP-100C-385A-D118.0008.7293.4084.8354.6383.3799.536
GHDP-100C-435A-D118.00011.1764.3646.1905.9404.32712.211
GHDP-100C-485A-D118.00013.8795.4897.6877.4175.54215.250
GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00011.4764.4816.3576.0994.44312.538
GHDP-130C-435A-D132.00014.6945.7378.1397.8095.68916.055
GHDP-130C-485A-D132.00018.2667.13210.1189.7297.08720.001
GHDP-130C-535A-D132.00022.2908.70412.34711.8918.66224.447
GHDP-130C-585A-D132.00026.72910.43714.80614.27610.40029.350
GHDP-130C-635A-D132.000






型号
最大扭矩 Nm3,5 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0001.7351.0771.8971.7061.0611.865
GHDP-085S-280A-D19.0002.4631.5292.6932.4351.5142.661
GHDP-085S-335A-D19.0003.5262.1893.8553.4872.1693.812
GHDP-085S-385A-D19.0004.6712.9005.1064.6322.8815.063
GHDP-085S-435A-D19.0005.9813.7126.5385.9423.6956.495
GHDP-100S-335A-D118.0004.1962.6054.5874.1352.5724.520
GHDP-100S-385A-D118.0005.5593.4516.0765.4983.4196.010
GHDP-100S-435A-D118.0007.1174.4187.7807.0404.3797.695
GHDP-100S-485A-D118.0008.8485.4929.6718.7705.4559.587
GHDP-100S-535A-D118.00010.7006.68811.80210.6256.64111.718
GHDP-100S-585A-D118.00012.7947.99614.11112.7187.94914.027
GHDP-130S-385A-D132.0007.3094.5377.9897.2294.4967.901
GHDP-130S-435A-D132.0009.3585.80910.2299.2565.75710.118
GHDP-130S-485A-D132.00011.6337.22112.71611.5317.17212.604
GHDP-130S-535A-D132.00014.1968.81215.51714.0958.76615.406
GHDP-130S-585A-D132.00017.02310.56718.60716.92110.52418.496
GHDP-130S-635A-D132.00020.11512.48621.98720.01312.44821.876

型号
最大扭矩 Nm4 BAR 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0003.1221.2191.7291.6491.2013.391
GHDP-085C-280A-D19.0004.4321.7302.4552.3531.7144.839
GHDP-085C-335A-D19.0006.3452.4773.5143.3712.4566.931
GHDP-085C-385A-D19.000





GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.0007.5612.9904.1884.0173.0018.259
GHDP-100C-385A-D118.00010.0123.9595.5455.3343.98510.967
GHDP-100C-435A-D118.00012.8135.0687.0976.8395.11014.062
GHDP-100C-485A-D118.00015.9286.2998.8228.5126.36017.503
GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00013.1455.1327.2816.9855.08914.361
GHDP-130C-435A-D132.00016.8236.5699.3198.9416.51318.383
GHDP-130C-485A-D132.00020.9138.16611.58411.1398.11422.900
GHDP-130C-535A-D132.00025.5129.96214.13213.6109.91427.980
GHDP-130C-585A-D132.000





GHDP-130C-635A-D132.000






型号最大扭矩 Nm4 BAR 对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0001.9881.2342.1731.9551.2162.137
GHDP-085S-280A-D19.0002.8231.7523.0852.7901.7353.049
GHDP-085S-335A-D19.0004.0412.5084.4173.9962.4854.368
GHDP-085S-385A-D19.0005.3503.3215.8485.3053.3005.799
GHDP-085S-435A-D19.0006.8484.2517.4856.8034.2317.436
GHDP-100S-335A-D118.0004.8082.9855.2564.7392.9475.180
GHDP-100S-385A-D118.0006.3673.9526.9606.2973.9176.883
GHDP-100S-435A-D118.0008.1495.0588.9078.0615.0138.811
GHDP-100S-485A-D118.00010.1306.28811.07310.0426.24610.976
GHDP-100S-535A-D118.00012.2297.64313.48812.1437.58913.392
GHDP-100S-585A-D118.00014.6229.13916.12714.5359.08516.031
GHDP-130S-385A-D132.0008.3715.1969.1508.2805.1509.050
GHDP-130S-435A-D132.00010.7146.65111.71110.5986.59211.584
GHDP-130S-485A-D132.00013.3198.26814.55813.2038.21214.431
GHDP-130S-535A-D132.00016.24810.08617.76016.13210.03317.633
GHDP-130S-585A-D132.00019.47612.08921.28819.36012.04121.161
GHDP-130S-635A-D132.00023.00514.28025.14622.88914.23625.019

型号
最大扭矩 Nm4,5 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0003.5531.3941.9491.8571.3633.826
GHDP-085C-280A-D19.0005.0441.9782.7662.6531.9475.468
GHDP-085C-335A-D19.0007.2202.8323.9603.8162.8017.865
GHDP-085C-385A-D19.000





GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.0008.4933.3324.6594.4903.2959.253
GHDP-100C-385A-D118.00011.2184.4006.1535.9464.36412.254
GHDP-100C-435A-D118.00014.3215.6187.8557.5725.55715.605
GHDP-100C-485A-D118.000





GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00014.8335.7928.2167.8835.74216.206
GHDP-130C-435A-D132.00018.9747.40910.51010.0857.34720.733
GHDP-130C-485A-D132.00023.5869.21013.06512.5639.15225.829
GHDP-130C-535A-D132.00028.70111.20715.89915.31111.15331.478
GHDP-130C-585A-D132.000





GHDP-130C-635A-D132.000






型号最大扭矩 Nm4,5 BAR 对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0002.2561.4102.4892.2061.3792.433
GHDP-085S-280A-D19.0003.2032.0023.5333.1531.9713.478
GHDP-085S-335A-D19.0004.5852.8665.0574.5352.8345.002
GHDP-085S-385A-D19.0006.0563.7856.6796.0063.7546.624
GHDP-085S-435A-D19.0007.7314.8328.5277.6814.8018.472
GHDP-100S-335A-D118.0005.3943.3715.9495.3353.3355.885
GHDP-100S-385A-D118.0007.1254.4537.8587.0664.4167.793
GHDP-100S-435A-D118.0009.0955.68510.0328.9985.6249.924
GHDP-100S-485A-D118.00011.3067.06712.47011.2097.00612.363
GHDP-100S-535A-D118.00013.7588.59915.17413.6608.53815.067
GHDP-100S-585A-D118.000





GHDP-130S-385A-D132.0009.4465.86410.3269.3445.81110.213
GHDP-130S-435A-D132.00012.0847.50113.20811.9547.43513.066
GHDP-130S-485A-D132.00015.0229.32516.42014.8919.26216.277
GHDP-130S-535A-D132.00018.31611.37020.02118.18511.31019.877
GHDP-130S-585A-D132.00021.94413.62223.98621.81313.56723.843
GHDP-130S-635A-D132.00025.90716.08128.31825.77616.03228.175

型号最大扭矩 Nm5 BAR 非对称
输出扭 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0003.9161.5292.1692.0691.5074.255
GHDP-085C-280A-D19.0005.5602.1713.0802.9532.1516.070
GHDP-085C-335A-D19.0007.9593.1084.4094.2293.0818.695
GHDP-085C-385A-D19.000





GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.0009.4713.6985.2465.0153.65310.311
GHDP-100C-385A-D118.00012.5354.8946.9436.6624.85313.696
GHDP-100C-435A-D118.00015.9946.2458.8608.5016.19317.476
GHDP-100C-485A-D118.000





GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00016.4816.4359.1298.7596.38018.007
GHDP-130C-435A-D132.00021.0828.23211.67811.2058.16323.037
GHDP-130C-485A-D132.00026.20710.23314.51713.95910.16928.699
GHDP-130C-535A-D132.000





GHDP-130C-585A-D132.000





GHDP-130C-635A-D132.000






型号
最大扭矩 Nm5 BAR 对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0002.4941.5482.7262.4531.5252.681
GHDP-085S-280A-D19.0003.5412.1983.8703.5002.1773.825
GHDP-085S-335A-D19.0005.0693.1465.5415.0133.1185.479
GHDP-085S-385A-D19.0006.7084.1647.3336.6524.1377.271
GHDP-085S-435A-D19.000





GHDP-100S-335A-D118.0006.0323.7446.5935.9453.6976.498
GHDP-100S-385A-D118.0007.9834.9558.7267.8964.9118.631
GHDP-100S-435A-D118.00010.2126.33911.16310.1026.28311.042
GHDP-100S-485A-D118.00012.6957.88013.87612.5847.82713.756
GHDP-100S-535A-D118.00015.2869.55416.86015.1789.48616.741
GHDP-100S-585A-D118.000





GHDP-130S-385A-D132.00010.4966.51511.47310.3826.45711.348
GHDP-130S-435A-D132.00013.4278.33414.67613.2828.26114.518
GHDP-130S-485A-D132.00016.69110.36118.24416.54610.29118.086
GHDP-130S-535A-D132.00020.35112.63322.24520.20612.56722.086
GHDP-130S-585A-D132.00024.38215.13526.65124.23715.07426.492
GHDP-130S-635A-D132.00028.78517.86831.46428.64017.81331.306

型号
最大扭矩 Nm
5,5 BAR 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0004.3421.7032.3822.2691.6654.677
GHDP-085C-280A-D19.0006.1642.4183.3813.2432.3806.684
GHDP-085C-335A-D19.000





GHDP-085C-385A-D19.000





GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.00010.3814.0725.6945.4874.02811.309
GHDP-100C-385A-D118.00013.7115.3787.5217.2675.33414.977
GHDP-100C-435A-D118.000





GHDP-100C-485A-D118.000





GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00018.1497.08710.0539.6457.02619.830
GHDP-130C-435A-D132.00023.2129.06312.85812.3378.98725.364
GHDP-130C-485A-D132.00028.85511.26715.98415.37011.19631.598
GHDP-130C-535A-D132.000





GHDP-130C-585A-D132.000





GHDP-130C-635A-D132.000






型号
最大扭矩 Nm
5,5 BAR 对称
输出扭矩(Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0002.7471.7053.0032.7021.6802.953
GHDP-085S-280A-D19.0003.9002.4214.2633.8552.3974.213
GHDP-085S-335A-D19.0005.5833.4656.1025.5213.4346.035
GHDP-085S-385A-D19.0007.3884.5868.0757.3264.5568.008
GHDP-085S-435A-D19.000





GHDP-100S-335A-D118.0006.6444.1247.2626.5484.0727.157
GHDP-100S-385A-D118.0008.7915.4579.6098.6955.4089.505
GHDP-100S-435A-D118.00011.2446.97912.29011.1226.91812.157
GHDP-100S-485A-D118.000





GHDP-100S-535A-D118.000





GHDP-100S-585A-D118.000





GHDP-130S-385A-D132.00011.5597.17512.63411.4327.11112.496
GHDP-130S-435A-D132.00014.7839.17616.15914.6239.09515.984
GHDP-130S-485A-D132.00018.37711.40720.08718.21711.33019.913
GHDP-130S-535A-D132.00022.40213.90624.48722.24313.83424.313
GHDP-130S-585A-D132.00026.83516.65729.33226.67516.59129.157
GHDP-130S-635A-D132.000








型号
最大扭矩 Nm
6 BAR 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0004.7111.8392.6092.4891.8135.118
GHDP-085C-280A-D19.0006.6882.6113.7043.5522.5877.302
GHDP-085C-335A-D19.000





GHDP-085C-385A-D19.000





GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.00011.3934.4486.3116.0334.39512.403
GHDP-100C-385A-D118.00015.0425.8738.3327.9945.82416.435
GHDP-100C-435A-D118.000





GHDP-100C-485A-D118.000





GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00019.8177.73810.97710.5327.67221.653
GHDP-130C-435A-D132.00025.3419.89514.03813.4709.81227.692
GHDP-130C-485A-D132.000





GHDP-130C-535A-D132.000





GHDP-130C-585A-D132.000





GHDP-130C-635A-D132.000






型号
最大扭矩 Nm
6 BAR 对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0003.0001.8623.2792.9511.8353.225
GHDP-085S-280A-D19.0004.2592.6444.6564.2102.6184.602
GHDP-085S-335A-D19.0006.0973.7856.6646.0303.7506.591
GHDP-085S-385A-D19.000





GHDP-085S-435A-D19.000





GHDP-100S-335A-D118.0007.2564.5047.9317.1514.4477.816
GHDP-100S-385A-D118.0009.5995.95910.4939.4955.90510.378
GHDP-100S-435A-D118.00012.2757.62013.41812.1437.55213.273
GHDP-100S-485A-D118.000





GHDP-100S-535A-D118.000





GHDP-100S-585A-D118.000





GHDP-130S-385A-D132.00012.6217.83413.79612.4837.76413.645
GHDP-130S-435A-D132.00016.13910.01817.64115.9659.93017.451
GHDP-130S-485A-D132.00020.06312.45421.93019.88912.37021.740
GHDP-130S-535A-D132.00024.45415.18026.73024.28015.10126.539
GHDP-130S-585A-D132.00029.28818.18032.01329.11318.10831.823
GHDP-130S-635A-D132.000








型号
最大扭矩 Nm7 BAR 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0005.5052.1493.0492.9092.1195.981
GHDP-085C-280A-D19.0007.8163.0524.3294.1513.0248.534
GHDP-085C-335A-D19.000





GHDP-085C-385A-D19.000





GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.00013.3335.2737.3847.0845.29314.566
GHDP-100C-385A-D118.000





GHDP-100C-435A-D118.000





GHDP-100C-485A-D118.000





GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00023.1549.04112.82612.3058.96425.298
GHDP-130C-435A-D132.00029.60111.55816.39715.73411.46132.346
GHDP-130C-485A-D132.000





GHDP-130C-535A-D132.000





GHDP-130C-585A-D132.000





GHDP-130C-635A-D132.000






型号
最大扭矩 Nm7 BAR 对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0003.5062.1763.8323.4482.1453.769
GHDP-085S-280A-D19.0004.9783.0905.4414.9203.0605.378
GHDP-085S-335A-D19.0007.1254.4237.7887.0474.3837.703
GHDP-085S-385A-D19.000





GHDP-085S-435A-D19.000





GHDP-100S-335A-D118.0008.4795.2639.2688.3575.1989.135
GHDP-100S-385A-D118.00011.2156.96212.25911.0936.90012.126
GHDP-100S-435A-D118.00014.1488.84315.60513.9978.74815.438
GHDP-100S-485A-D118.000





GHDP-100S-535A-D118.000





GHDP-100S-585A-D118.000





GHDP-130S-385A-D132.00014.7469.15316.11814.5859.07215.943
GHDP-130S-435A-D132.00018.85211.70220.60618.64911.59920.384
GHDP-130S-485A-D132.00023.43514.54725.61623.23214.44925.394
GHDP-130S-535A-D132.00028.55717.72731.21528.35417.63530.993
GHDP-130S-585A-D132.000





GHDP-130S-635A-D132.000








型号
最大扭矩 Nm8,5 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-235A-D19.0006.6972.6153.7103.5392.5787.276
GHDP-085C-280A-D19.000





GHDP-085C-335A-D19.000





GHDP-085C-385A-D19.000





GHDP-085C-435A-D19.000





GHDP-100C-335A-D118.00016.1906.4038.9668.6026.42717.687
GHDP-100C-385A-D118.000





GHDP-100C-435A-D118.000





GHDP-100C-485A-D118.000





GHDP-100C-535A-D118.000





GHDP-130C-385A-D132.00028.15810.99515.59814.96510.90230.767
GHDP-130C-435A-D132.000





GHDP-130C-485A-D132.000





GHDP-130C-535A-D132.000





GHDP-130C-585A-D132.000





GHDP-130C-635A-D132.000






型号最大扭矩 Nm8,5 BAR 非对称
输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-235A-D19.0004.2652.6474.6624.1952.6094.585
GHDP-085S-280A-D19.0006.0553.7586.6195.9853.7226.542
GHDP-085S-335A-D19.000





GHDP-085S-385A-D19.000





GHDP-085S-435A-D19.000





GHDP-100S-335A-D118.00010.3156.40311.27410.1666.32311.112
GHDP-100S-385A-D118.00013.4588.41114.84313.3468.34214.720
GHDP-100S-435A-D118.000





GHDP-100S-485A-D118.000





GHDP-100S-535A-D118.000





GHDP-100S-585A-D118.000





GHDP-130S-385A-D132.00017.93311.13219.60217.73811.03319.389
GHDP-130S-435A-D132.00022.92114.22825.05422.67414.10324.784
GHDP-130S-485A-D132.00028.49317.68731.14528.24617.56830.875
GHDP-130S-535A-D132.000





GHDP-130S-585A-D132.000





GHDP-130S-635A-D132.000






ACTUATECH涂装作业
重载执行器(ACTUATECH标准)的涂装如图所述，完工后的产品可安装在外部环境中，包括：化学设施、煤气管、炼化厂和离岸应用领域。我司亦提供客户定制涂装。


表面准备
 SA 2.1/2等级喷砂
涂刷
油漆类型
厚度
第一层无机富锌底漆
 75 µ
中间层
环氧树脂
110 µ
最末层
聚氨酯
40 µ

整体厚度
 225 µ
标准涂装：RAL 5010

中央阀体 - 可用配置

不对称设计
开启起动扭矩(BTO)极高，造成开启操作最终阶段（ETO）的输出扭矩骤降。闭合启动扭矩（BTC）低于开启起动扭矩（BTO）。

对称设计
扭矩期限更为均衡，BTO-ETO和BTC-ETC数值相近。

碳钢材质GD型重载荷双效气动执行器 - 规格 -

有关详情请查阅ACTUATECH附件产品目录。

泵
液压筒
油槽
止回阀
安全阀

液压紧急手动控制装置

碳钢材质GD型重载荷双效气动执行器 - 附件 - 液压紧急手动控制装置

用于双效执行器的可拆卸式紧急手动控制装置 (仅针对配备085阀体的型号)

碳钢材质GD型重载荷双效气动执行器 - 附件 - 用于双效执行器的可拆卸式紧急手动控制装置 (仅针对配备085阀体的型号)

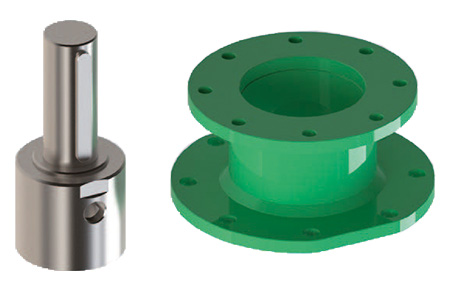

连接器 - 接头

碳钢材质GD型重载荷双效气动执行器 - 附件 - 连接器 - 接头

执行器的连接端设计符合最新的国际标准，方便其连接阀门和附件。ACTUATECH通过组装套件、连接器和选装接头来完善自己的服务。

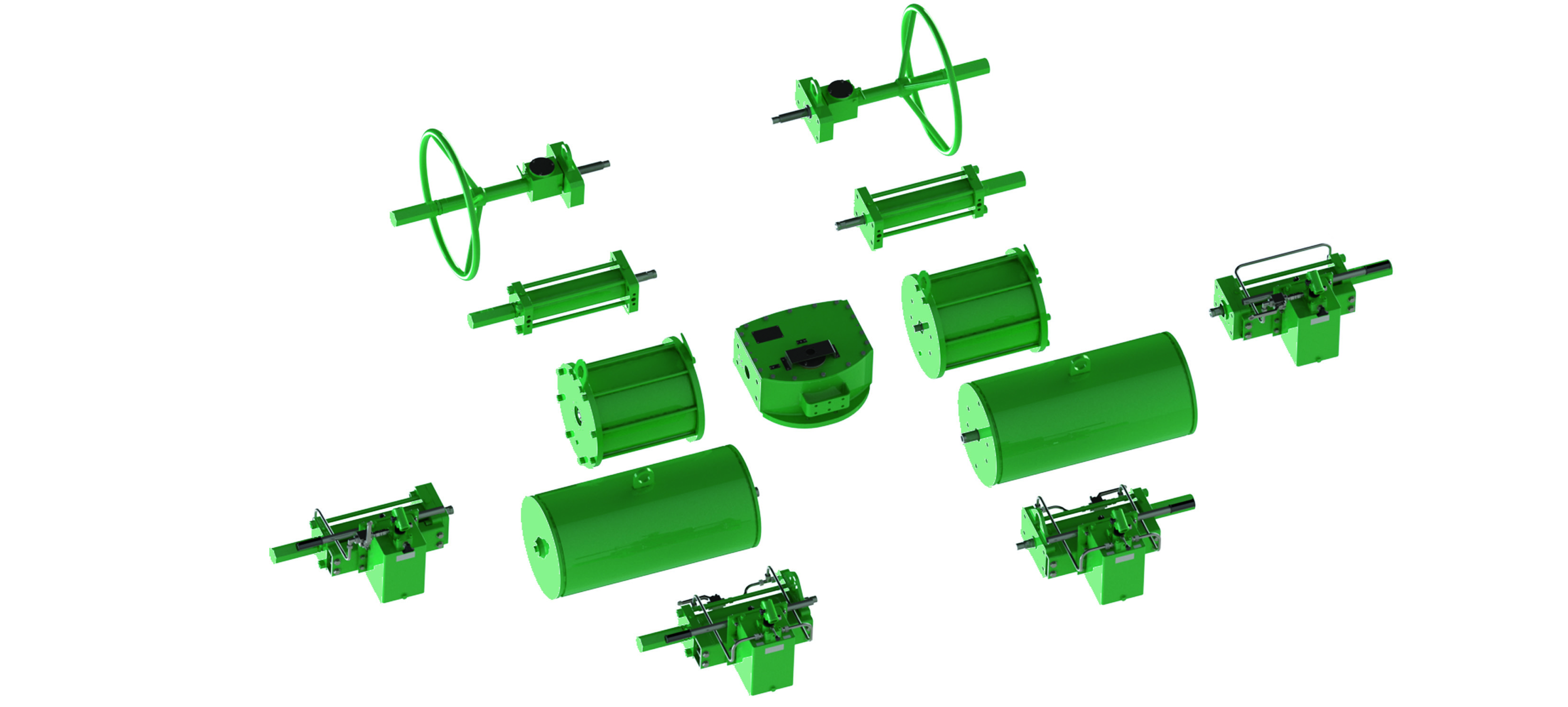

模块化构造设计

碳钢材质GD型重载荷双效气动执行器 - 附件 - 模块化构造设计

ACTUATECH重载执行器的模块化设计可以赋予产品更完善的多用途应用。
此外，模块化构造还可以帮助用户按照应用领域的需求进行组件装配。
