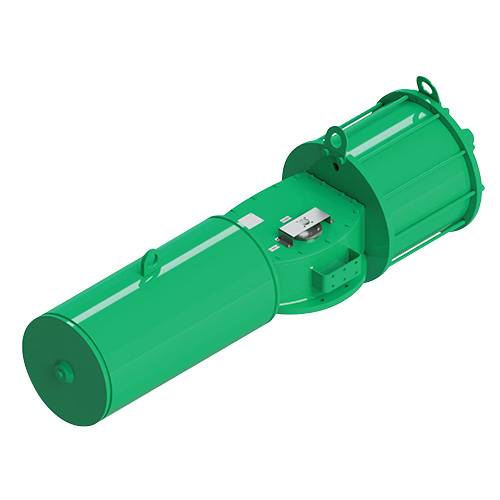

GS单效重载碳钢气动执行器

  • 优点
  • 特性
  • 物料
  • 图表和起动扭矩
  • 规格

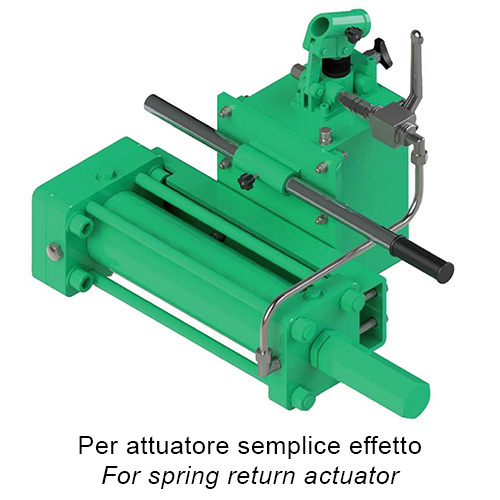

  • 附件
  • 文档

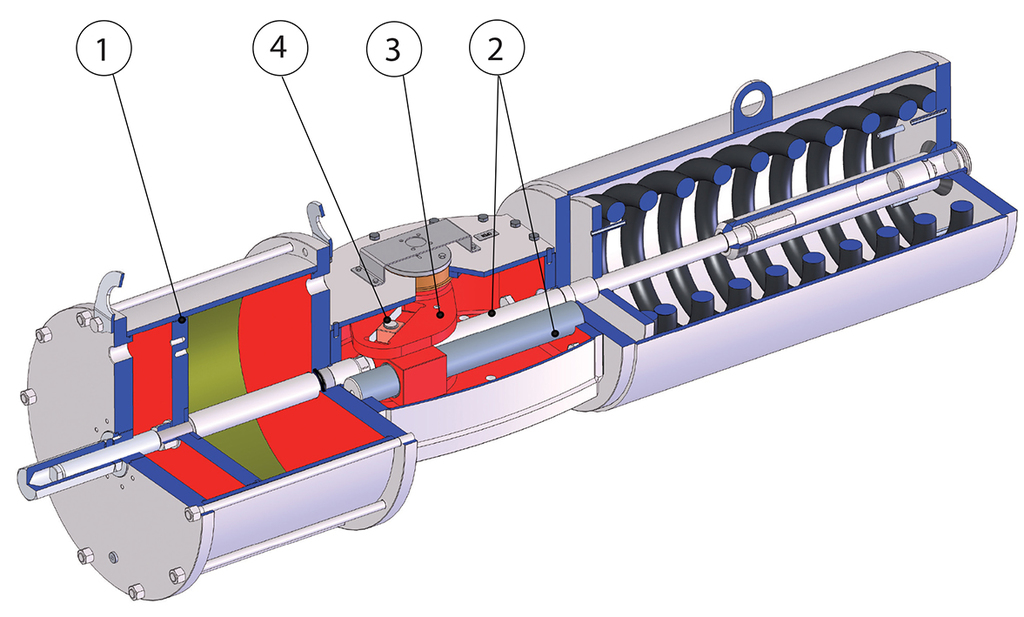

1 碳石墨填料PTFE制造的滑动带
降低活塞与缸筒之间的摩擦力;
即便长期停用,亦可避免密封件与缸筒发生粘连。
减弱“粘滑”(stick-slip)效应。

2 传动轴和引导杆采用硬度超过200 HB的镀铬钢材质制成

更强的耐腐蚀性能
降低传动轴、引导杆和滑套之间的摩擦力,从而减少组件磨损

3.与执行器控制流分离,将线性运动转换为旋转运动的动力转换系统。

可使用高科技气体驱动执行器
避免爆炸环境

4 滚动摩擦的十字滑块(通过无传动系统将线性运动转换为旋转运动)

活塞和传动轴之间的摩擦力更小,减少零部件磨损
打开和关闭时有着更强的起动扭矩

黄铜衬套
相较于其他材料的衬套,黄铜材料可以降低磨损

ATEX认证
可安装于潜在易爆的环境内

最高达SIL3等级的认证
更高的运行安全等级

技术参数
额定扭矩:2,000Nm至30,000Nm
法兰标准:DIN/ISO 5211,DIN 3337
额定旋转角度:90°,行程调节介于-5°~+95°
供应压力:3bar至8.5bar(输出扭矩参见表格)
双效型号的起动扭矩与执行器的供应压力成正比
单效型号在返回时的起动扭矩(执行器未供应时)仅取决于弹簧的运动,与供应压力无关
可用配置:双效,弹簧返回常闭(NC),弹簧返回常开(NO)
中央阀体配置:对称或非对称十字滑块

运行条件:
温度范围:标准型号:-20℃~+80℃(密封件材质:NBR)
特殊性好:高温型 -20℃~+150℃(密封件材质:FKM)
流体源:无需润滑且经过滤的压缩空气,惰性气体,高技术气体
温度低于0℃时,请使用干燥空气
如果需要润滑,建议使用与所用执行器类型的内部材料兼容的非洗涤剂油

设计准则:

满足EN 15714-3、ISO 5211、ISO 12490

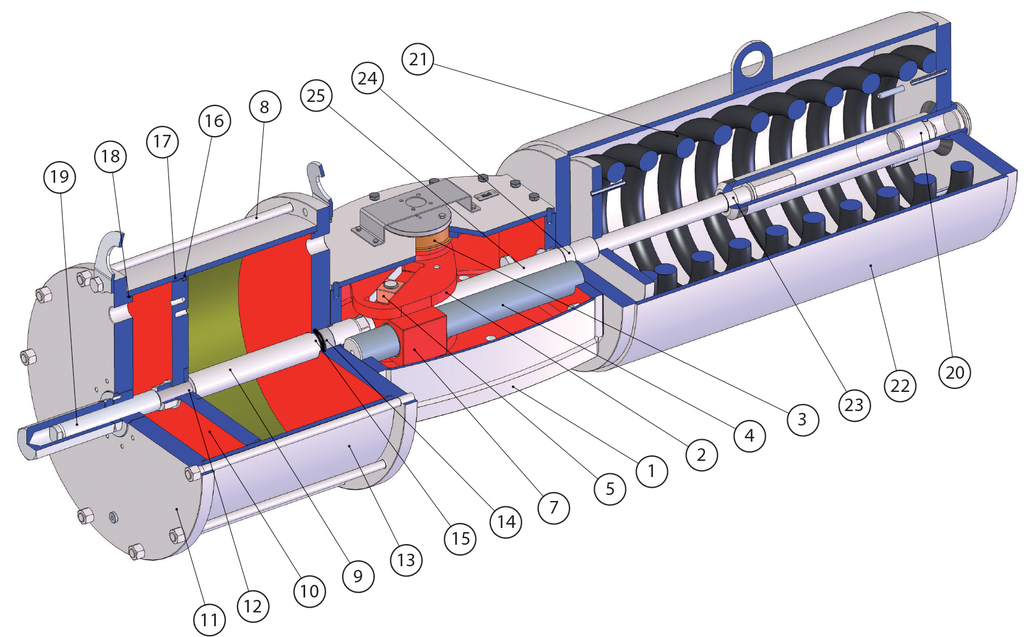

位置
介绍
材质
1中央阀体
碳钢
2十字滑块
碳钢
3十字滑块衬套
黄铜
4引导杆
合金钢(镀铬)
5滑动轴承青铜
6抽气阀(未绘出) 黄铜
7导轨锁
碳钢
8双头螺栓
合金钢
9活塞杆
合金钢(镀铬)
10活塞
碳钢
11法兰
碳钢
12O形圈NBR
13缸筒
碳钢(镀镍)
14活塞杆衬套
钢+青铜+PTFE
15G密封件NBR+聚氨酯
16O形圈NBR
17滑动环
PTFE + 石墨
18O形圈NBR
19调整螺柱
合金钢
20调整螺柱合金钢
21弹簧
合金钢
22弹簧套件
碳钢
23套箍
钢+青铜 + PTFE
24套箍
钢+青铜 + PTFE
25弹簧套件杆
合金钢(镀铬)

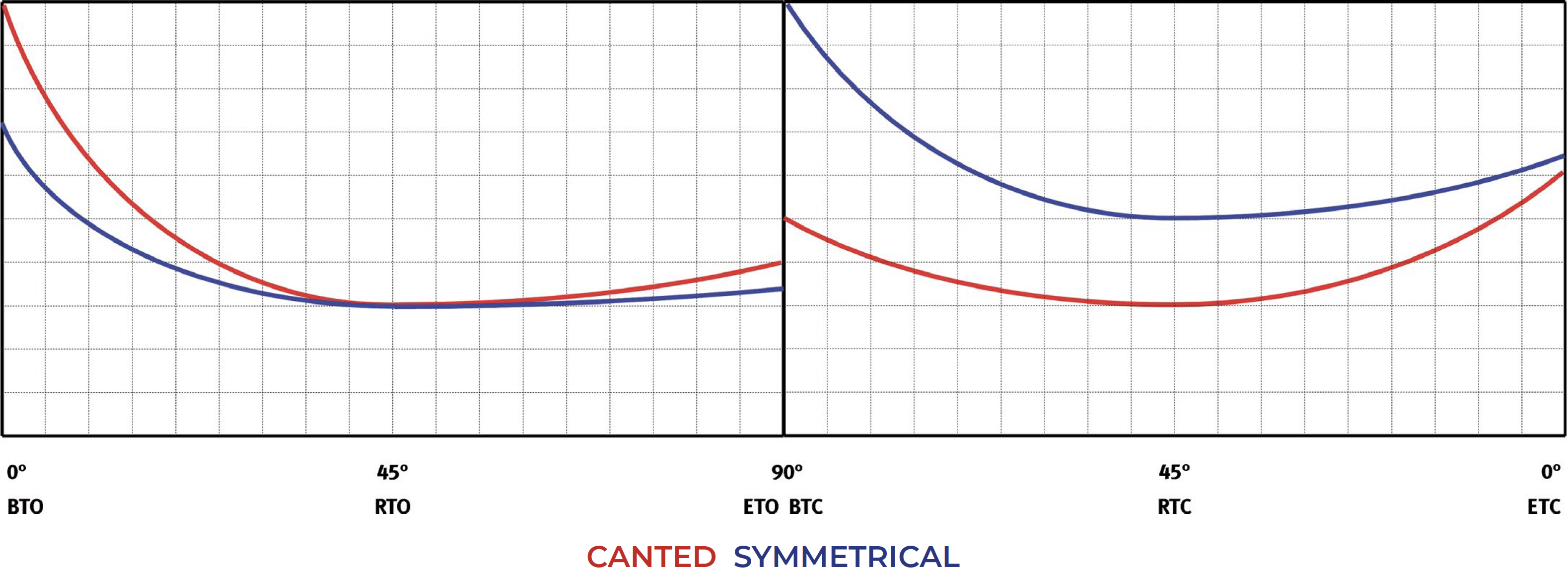

单效常闭 - 扭矩图表(起动扭矩)单效常闭 - 扭矩图表(起动扭矩)

型号最大扭矩 Nm3 BAR 非对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.000





GHDP-085C-385A-C29.0003.8021.0011.1142.0001.2052.324
GHDP-085C-435A-C29.0005.5631.7042.0901.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.00010.1032.2112.2196.4173.8117.099
GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.00012.4193.0553.2588.1385.01710.196
GHDP-130C-635A-C132.00016.5884.7455.5678.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.00015.0833.3293.35210.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.00017.0754.4574.93110.8596.78014.156
GHDP-130C-735A-C532.00021.8376.3707.56910.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000






GHDP-130C-735A-C632.000






型号
最大扭矩 Nm3 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0001.4413933832.3361.1231.475
GHDP-085S-385A-C29.0002.4211.1381.4542.3261.1161.464
GHDP-085S-435A-C29.0003.5431.8482.6812.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.000





GHDP-085S-435A-C39.0002.6529249153.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.000





GHDP-085S-435A-C59.0002.2955445254.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.0005.8342.2812.3176.3152.7643.228
GHDP-100S-585A-C118.0007.6793.5114.3336.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.000





GHDP-100S-535A-C218.0004.5899989567.4413.4954.460
GHDP-100S-585A-C218.0006.4342.6942.9727.4543.5034.474
GHDP-100S-535A-C318.000





GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.000





GHDP-130S-535A-C132.0005.4841.6691.6409.4664.6946.407
GHDP-130S-585A-C132.0007.9093.5544.2919.4834.7056.426
GHDP-130S-635A-C132.00010.5645.2537.1939.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.0006.9501.6401.58211.7255.6267.374
GHDP-130S-635A-C232.0009.6054.0404.48411.7575.6467.409
GHDP-130S-685A-C232.00012.4245.8767.56611.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.000





GHDP-130S-635A-C532.0008.0543.2223.36112.6866.4088.942
GHDP-130S-685A-C532.00010.8745.0816.44312.6686.3968.922
GHDP-130S-735A-C532.00013.9077.0109.75812.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.00011.9834.5884.56916.9438.17910.802



型号
最大扭矩 Nm
3,5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0003.0706967092.0081.2112.340
GHDP-085C-385A-C29.0004.8681.4291.7052.0001.2052.324
GHDP-085C-435A-C29.0006.9252.2412.8441.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.0005.5261.3361.4113.2541.9503.713
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0004.9661.0941.1013.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.0009.6561.9761.9716.4063.8037.076
GHDP-100C-585A-C218.00013.0323.4443.8416.4173.8117.099
GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.0009.8992.1141.6868.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.00011.8332.8082.9338.1245.00710.167
GHDP-130C-585A-C132.00016.2714.6185.3918.1385.01710.196
GHDP-130C-635A-C132.00021.1266.5448.0818.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.00014.7653.1783.17610.0826.07311.701
GHDP-130C-635A-C232.00019.6215.2315.86510.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.00017.1864.5024.99210.8756.79214.189
GHDP-130C-685A-C532.00022.3566.5767.85610.8596.78014.156
GHDP-130C-735A-C532.00027.9178.77610.93710.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.00024.8976.2206.69614.5638.80817.139

型号 最大扭矩 Nm
3,5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0001.9558359452.3361.1231.475
GHDP-085S-385A-C29.0003.1001.5692.1972.3261.1161.464
GHDP-085S-435A-C29.0004.4102.3923.6282.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.000





GHDP-085S-435A-C39.0003.5191.5641.8633.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.000





GHDP-085S-435A-C59.0003.1621.3291.4734.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.0005.4451.9081.8916.3112.7623.225
GHDP-100S-535A-C118.0007.3943.3274.0226.3152.7643.228
GHDP-100S-585A-C118.0009.5444.7046.3726.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.000





GHDP-100S-535A-C218.0006.1492.5012.6617.4413.4954.460
GHDP-100S-585A-C218.0008.2993.9115.0117.4543.5034.474
GHDP-100S-535A-C318.0005.5482.0311.4469.1394.3865.400
GHDP-100S-585A-C318.0007.5503.1863.3869.1394.3865.400
GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.0006.3802.5112.25210.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.0004.9721.1241.0809.4624.6916.403
GHDP-130S-535A-C132.0007.5353.3103.8829.4664.6946.407
GHDP-130S-585A-C132.00010.3625.1256.9729.4834.7056.426
GHDP-130S-635A-C132.00013.4547.07410.3529.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.0009.4033.9054.26311.7255.6267.374
GHDP-130S-635A-C232.00012.4955.9227.64311.7575.6467.409
GHDP-130S-685A-C232.00015.7888.01111.24211.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.0007.8523.0813.14012.6556.3888.908
GHDP-130S-635A-C532.00010.9455.1266.52012.6866.4088.942
GHDP-130S-685A-C532.00014.2377.21810.11912.6686.3968.922
GHDP-130S-735A-C532.00017.7799.44513.99012.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.00012.3134.8344.93016.9638.19210.824
GHDP-130S-735A-C632.00015.8557.1988.80116.9438.17910.802



型号
最大扭矩 Nm4 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0003.8781.0321.1562.0081.2112.340
GHDP-085C-385A-C29.0005.9341.8512.2962.0001.2052.324
GHDP-085C-435A-C29.0008.2862.7753.5981.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.0006.8871.8932.1653.2541.9503.713
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0006.3271.6671.8553.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.00010.5642.4162.4745.4533.0955.117
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.0008.8551.9791.7136.5433.8337.076
GHDP-100C-535A-C218.00012.1063.0663.3296.4063.8037.076
GHDP-100C-585A-C218.00015.6364.3325.1556.5433.8337.076
GHDP-100C-535A-C318.00010.8772.4482.1837.8514.6158.491
GHDP-100C-585A-C318.00014.4263.6803.9847.8514.6158.491
GHDP-100C-535A-C418.0009.0611.8231.2618.8815.36510.614
GHDP-100C-585A-C418.00012.6103.0553.0638.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.00010.4552.1732.1698.1205.00410.159
GHDP-130C-535A-C132.00015.0544.1304.7178.1245.00710.167
GHDP-130C-585A-C132.00020.1226.1487.5258.1385.01710.196
GHDP-130C-635A-C132.00025.6648.33210.5948.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.00018.6174.8225.30910.0826.07311.701
GHDP-130C-635A-C232.00024.1587.0508.37910.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.00016.1824.0914.43610.8496.77214.134
GHDP-130C-635A-C532.00021.7246.3257.50610.8756.79214.189
GHDP-130C-685A-C532.00027.6368.66610.78110.8596.78014.156
GHDP-130C-735A-C532.00033.99711.16714.30410.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.00024.6166.1046.54114.5818.82117.175
GHDP-130C-735A-C632.00030.9778.68810.06414.5638.80817.139

型号
最大扭矩 Nm4 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0002.4691.1691.5072.3361.1231.475
GHDP-085S-385A-C29.0003.7791.9972.9392.3261.1161.464
GHDP-085S-435A-C29.0005.2772.9334.5762.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.0002.8881.1411.1733.7881.8052.345
GHDP-085S-435A-C39.0004.3862.1222.8103.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.0002.5327967844.1102.0102.698
GHDP-085S-435A-C59.0004.0291.8942.4214.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.0003.4781.3261.3205.0162.4353.238
GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.0004.7461.1651.1276.3362.7793.252
GHDP-100S-485A-C118.0006.7272.8893.2936.3112.7623.225
GHDP-100S-535A-C118.0008.9554.3295.7286.3152.7643.228
GHDP-100S-585A-C118.00011.4105.8828.4116.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.0005.4821.9481.9327.4383.4924.456
GHDP-100S-535A-C218.0007.7103.5314.3677.4413.4954.460
GHDP-100S-585A-C218.00010.1655.0977.0507.4543.5034.474
GHDP-100S-535A-C318.0007.0102.8742.8639.1394.3865.400
GHDP-100S-585A-C318.0009.2974.1935.0799.1394.3865.400
GHDP-100S-535A-C418.0005.8402.1991.72910.3635.1516.750
GHDP-100S-585A-C418.0008.1273.5183.94510.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.0006.6582.7252.9239.4624.6916.403
GHDP-130S-535A-C132.0009.5874.6326.1259.4664.6946.407
GHDP-130S-585A-C132.00012.8156.6729.6539.4834.7056.426
GHDP-130S-635A-C132.00016.3448.88413.5119.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.0008.6283.3693.41611.7085.6157.356
GHDP-130S-585A-C232.00011.8565.5116.94411.7255.6267.374
GHDP-130S-635A-C232.00015.3857.75710.80211.7575.6467.409
GHDP-130S-685A-C232.00019.15110.12614.91811.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.0007.0772.3222.29312.6386.3778.889
GHDP-130S-585A-C532.00010.3054.7145.82112.6556.3888.908
GHDP-130S-635A-C532.00013.8356.9649.67912.6866.4088.942
GHDP-130S-685A-C532.00017.6009.33313.79512.6686.3968.922
GHDP-130S-735A-C532.00021.65111.86818.22312.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.00011.9114.5124.49016.9828.20410.845
GHDP-130S-685A-C632.00015.6777.0828.60616.9638.19210.824
GHDP-130S-735A-C632.00019.7289.67713.03416.9438.17910.802

型号
最大扭矩 Nm4,5 BAR 对称 - 常闭输出扭矩 (Nm)

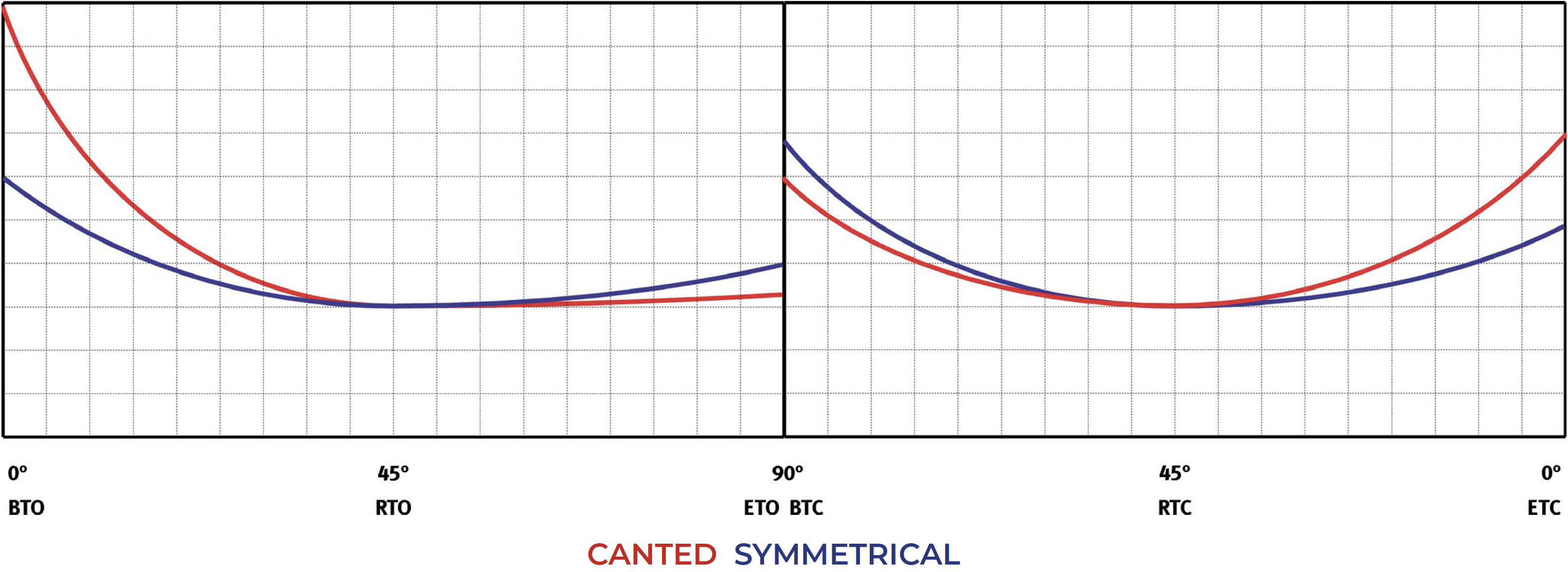

BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0004.7431.3211.5892.0821.2462.406
GHDP-085C-385A-C29.0006.9252.0782.6962.0821.2462.406
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.0005.8111.4401.4943.4272.0123.709
GHDP-085C-435A-C39.0008.2952.3022.7553.4272.0123.709
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0007.8672.1542.5373.6702.1904.210
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.0006.9971.6311.5414.7832.8175.227
GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.0009.0532.0401.8135.6273.1695.189
GHDP-100C-485A-C118.00012.3323.1783.4785.6273.1695.189
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.00010.7192.6252.6596.5433.8337.076
GHDP-100C-535A-C218.00014.3553.8874.5046.5433.8337.076
GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.00013.1443.2353.3347.8514.6158.491
GHDP-100C-585A-C318.00017.1374.6205.3607.8514.6158.491
GHDP-100C-535A-C418.00011.3292.6102.4128.8815.36510.614
GHDP-100C-585A-C418.00015.3213.9954.4398.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






型号最大扭矩 Nm
4,5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0001.7367157192.3571.1361.498
GHDP-085S-335A-C29.0003.0571.4771.9992.3361.1231.475
GHDP-085S-385A-C29.0004.4632.2883.3622.3261.1161.464
GHDP-085S-435A-C29.0006.0643.2124.9142.3211.1131.459
GHDP-085S-335A-C39.0002.3398395533.7971.8112.356
GHDP-085S-385A-C39.0003.7451.6501.9163.7881.8052.345
GHDP-085S-435A-C39.0005.3462.5743.4683.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.0003.4681.4911.6484.1102.0102.698
GHDP-085S-435A-C59.0005.0702.4153.2004.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.0006.9382.5293.1815.0162.4353.238
GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.0005.8342.3912.3796.3362.7793.252
GHDP-100S-485A-C118.0007.9483.6104.4276.3112.7623.225
GHDP-100S-535A-C118.00010.2914.9626.6986.3152.7643.228
GHDP-100S-585A-C118.00012.8646.4469.1926.3152.7643.228
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0004.7941.7911.3717.4633.5084.483
GHDP-100S-485A-C218.0006.9083.0103.4197.4383.4924.456
GHDP-100S-535A-C218.0009.2514.3625.6907.4413.4954.460
GHDP-100S-585A-C218.00011.8245.8468.1847.4543.5034.474
GHDP-100S-535A-C318.0008.4713.7174.2799.1394.3865.400
GHDP-100S-585A-C318.00011.0445.2016.7739.1394.3865.400
GHDP-100S-535A-C418.0007.3013.0423.14510.3635.1516.750
GHDP-100S-585A-C418.0009.8744.5265.63910.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.000





GHDP-130S-535A-C132.000





GHDP-130S-585A-C132.000





GHDP-130S-635A-C132.000





GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.000





GHDP-130S-635A-C232.000





GHDP-130S-685A-C232.000





GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.000





GHDP-130S-635A-C532.000





GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000








型号
最大扭矩 Nm
5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0003.0937067222.0261.2242.378
GHDP-085C-335A-C29.0005.4921.6762.0512.0081.2112.340
GHDP-085C-385A-C29.0008.0672.6893.4772.0001.2052.324
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.0006.6681.8052.0443.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.0006.1081.5771.7333.5302.1544.281
GHDP-085C-435A-C59.0009.0492.7543.3633.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.0008.1832.1942.4694.3102.6175.137
GHDP-100C-385A-C118.0007.3041.4339255.6273.1695.189
GHDP-100C-435A-C118.00010.6922.4722.5455.4743.1105.160
GHDP-100C-485A-C118.00014.6134.3754.7075.4633.1515.122
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.0008.9382.0071.7556.5433.8337.076
GHDP-100C-485A-C218.00012.6363.2833.6226.4033.8017.070
GHDP-100C-535A-C218.00016.6224.6745.6556.5433.8337.076
GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.00015.4124.0224.4857.8514.6158.491
GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.00013.5963.3973.5638.8815.36510.614
GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00010.6242.2652.2638.1485.02410.216
GHDP-130C-485A-C132.00015.7504.4095.1028.1205.00410.159
GHDP-130C-535A-C132.00021.4966.6918.2868.1245.00710.167
GHDP-130C-585A-C132.00027.8259.18011.7928.1385.01710.196
GHDP-130C-635A-C132.00034.74011.89215.6228.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00014.2442.8942.88710.0646.05911.664
GHDP-130C-535A-C232.00019.9915.3816.07010.0686.06211.672
GHDP-130C-585A-C232.00026.3207.9089.57610.0826.07311.701
GHDP-130C-635A-C232.00033.23410.63713.40710.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.00017.5564.6525.19710.8346.76114.105
GHDP-130C-585A-C532.00023.8857.1838.70310.8496.77214.134
GHDP-130C-635A-C532.00030.8009.91112.53410.8756.79214.189
GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.00020.8654.4664.46314.5708.81317.153
GHDP-130C-635A-C632.00027.7807.4008.29314.5968.83317.207
GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






型号
最大扭矩 Nm
5 BAR 非对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0001.9708459612.3571.1361.498
GHDP-085S-335A-C29.0003.4981.8202.6312.3361.1231.475
GHDP-085S-385A-C29.0005.1372.8464.4232.3261.1161.464
GHDP-085S-435A-C29.0007.0104.0146.4712.3211.1131.459
GHDP-085S-335A-C39.0002.8261.1201.0253.7971.8112.356
GHDP-085S-385A-C39.0004.2462.0332.6583.7881.8052.345
GHDP-085S-435A-C39.0006.1203.2164.7053.7821.8012.340
GHDP-085S-335A-C59.0002.2504964764.1202.0162.708
GHDP-085S-385A-C59.0003.8901.8052.2684.1102.0102.698
GHDP-085S-435A-C59.0005.7632.9924.3164.1052.0072.692
GHDP-085S-385A-C69.0003.3381.1781.1675.0212.4383.243
GHDP-085S-435A-C69.0005.2112.4793.2155.0162.4353.238
GHDP-100S-385A-C118.0004.5809889466.3422.7833.259
GHDP-100S-435A-C118.0006.8092.9443.3826.3362.7793.252
GHDP-100S-485A-C118.0009.2924.5446.0966.3112.7623.225
GHDP-100S-535A-C118.00012.0766.3019.1396.3152.7643.228
GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0005.5642.0352.0217.4633.5084.483
GHDP-100S-485A-C218.0008.0473.7484.7357.4383.4924.456
GHDP-100S-535A-C218.00010.8315.5177.7787.4413.4954.460
GHDP-100S-585A-C218.00013.8967.44311.1297.4543.5034.474
GHDP-100S-535A-C318.0009.9324.5605.6959.1394.3865.400
GHDP-100S-585A-C318.00012.7916.2098.4669.1394.3865.400
GHDP-100S-535A-C418.0008.7623.8854.56110.3635.1516.750
GHDP-100S-585A-C418.00011.6215.5347.33210.3635.1516.750
GHDP-130S-435A-C132.0006.7662.7993.0419.4954.7126.439
GHDP-130S-485A-C132.00010.0304.9146.6099.4624.6916.403
GHDP-130S-535A-C132.00013.6907.22210.6109.4664.6946.407
GHDP-130S-585A-C132.00017.7219.74415.0169.4834.7056.426
GHDP-130S-635A-C132.00022.12512.49219.8299.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.0009.0713.6793.90011.7045.6127.351
GHDP-130S-535A-C232.00012.7316.0727.90111.7085.6157.356
GHDP-130S-585A-C232.00016.7628.62612.30711.7255.6267.374
GHDP-130S-635A-C232.00021.16611.38917.12011.7575.6467.409
GHDP-130S-685A-C232.00025.87714.33422.27111.7385.6347.388
GHDP-130S-485A-C532.0007.5212.7932.77712.6336.3748.884
GHDP-130S-535A-C532.00011.1805.2776.77812.6386.3778.889
GHDP-130S-585A-C532.00015.2117.83211.18412.6556.3888.908
GHDP-130S-635A-C532.00019.61510.59515.99712.6866.4088.942
GHDP-130S-685A-C532.00024.32713.53921.14712.6686.3968.922
GHDP-130S-735A-C532.00029.39516.70026.68812.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.00013.2885.5055.99416.9508.18410.810
GHDP-130S-635A-C632.00017.6918.37910.80816.9828.20410.845
GHDP-130S-685A-C632.00022.40311.37015.95816.9638.19210.824
GHDP-130S-735A-C632.00027.47214.55721.49816.9438.17910.802



型号
最大扭矩 Nm
5,5 BAR 非对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0003.6579421.0342.0261.2242.378
GHDP-085C-335A-C29.0006.2991.9952.4982.0081.2112.340
GHDP-085C-385A-C29.0009.1333.1074.0672.0001.2052.324
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0004.9011.0641.0653.2661.9593.738
GHDP-085C-385A-C39.0007.7342.2322.6343.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.0007.1752.0082.3243.5302.1544.281
GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.0006.3091.4121.4304.3152.6205.146
GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.0008.4781.8411.5215.6273.1695.189
GHDP-100C-435A-C118.00012.3123.1513.4435.4743.1105.160
GHDP-100C-485A-C118.00016.0594.4725.3705.6273.1695.189
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.00010.3572.3262.3606.4243.8177.114
GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.00015.8634.1834.7148.8815.36510.614
GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00012.7543.1943.4438.1485.02410.216
GHDP-130C-485A-C132.00018.3975.4656.5698.1205.00410.159
GHDP-130C-535A-C132.00024.7187.95910.0708.1245.00710.167
GHDP-130C-585A-C132.00031.67710.69113.9258.1385.01710.196
GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00016.8914.1094.35410.0646.05911.664
GHDP-130C-535A-C232.00023.2126.6737.85510.0686.06211.672
GHDP-130C-585A-C232.00030.1719.43111.71010.0826.07311.701
GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00014.4573.3673.48010.8306.75814.097
GHDP-130C-535A-C532.00020.7775.9486.98210.8346.76114.105
GHDP-130C-585A-C532.00027.7378.70510.83710.8496.77214.134
GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.00024.7176.1456.59614.5708.81317.153
GHDP-130C-635A-C632.00032.3189.22410.80714.5968.83317.207
GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






型号
最大扭矩 Nm
5,5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0002.3291.0791.3542.3571.1361.498
GHDP-085S-335A-C29.0004.0122.1423.1932.3361.1231.475
GHDP-085S-385A-C29.0005.8163.2705.1662.3261.1161.464
GHDP-085S-435A-C29.0007.8774.5547.4182.3211.1131.459
GHDP-085S-335A-C39.0003.1211.3011.4283.7971.8112.356
GHDP-085S-385A-C39.0004.9252.4643.4003.7881.8052.345
GHDP-085S-435A-C39.0006.9863.7605.6533.7821.8012.340
GHDP-085S-335A-C59.0002.7641.0431.0384.1202.0162.708
GHDP-085S-385A-C59.0004.5692.2383.0104.1102.0102.698
GHDP-085S-435A-C59.0006.6303.5365.2634.1052.0072.692
GHDP-085S-385A-C69.0004.0171.7031.9105.0212.4383.243
GHDP-085S-435A-C69.0006.0783.0304.1625.0162.4353.238
GHDP-100S-385A-C118.0005.3881.8481.8296.3422.7833.259
GHDP-100S-435A-C118.0007.8413.6164.5106.3362.7793.252
GHDP-100S-485A-C118.00010.5745.3557.4986.3112.7623.225
GHDP-100S-535A-C118.00013.6367.28010.8446.3152.7643.228
GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0006.5962.8023.1497.4633.5084.483
GHDP-100S-485A-C218.0009.3294.5676.1377.4383.4924.456
GHDP-100S-535A-C218.00012.3916.4999.4847.4413.4954.460
GHDP-100S-585A-C218.00015.3187.86211.5717.4413.4954.460
GHDP-100S-535A-C318.00011.3935.4037.1119.1394.3865.400
GHDP-100S-585A-C318.00014.5387.21710.1599.1394.3865.400
GHDP-100S-535A-C418.00010.2234.7285.97710.3635.1516.750
GHDP-100S-585A-C418.00013.3686.5429.02510.3635.1516.750
GHDP-130S-435A-C132.0008.1223.6934.5249.4954.7126.439
GHDP-130S-485A-C132.00011.7165.9818.4529.4624.6916.403
GHDP-130S-535A-C132.00015.7428.50712.8529.4664.6946.407
GHDP-130S-585A-C132.00020.17411.27517.6979.4834.7056.426
GHDP-130S-635A-C132.00025.01514.29322.9889.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.0007.1631.8671.81511.7375.6347.387
GHDP-130S-485A-C232.00010.7574.8005.74311.7045.6127.351
GHDP-130S-535A-C232.00014.7837.37610.14311.7085.6157.356
GHDP-130S-585A-C232.00019.21510.16614.98811.7255.6267.374
GHDP-130S-635A-C232.00024.05613.19620.28011.7575.6467.409
GHDP-130S-685A-C232.00029.24116.43225.94711.7385.6347.388
GHDP-130S-485A-C532.0009.2073.9984.62012.6336.3748.884
GHDP-130S-535A-C532.00013.2326.5839.02012.6386.3778.889
GHDP-130S-585A-C532.00017.6649.37313.86512.6556.3888.908
GHDP-130S-635A-C532.00022.50512.40219.15612.6866.4088.942
GHDP-130S-685A-C532.00027.69015.63724.82412.6686.3968.922
GHDP-130S-735A-C532.00033.26819.11130.92012.6476.3838.899
GHDP-130S-535A-C632.00011.3083.8713.83116.9338.17310.792
GHDP-130S-585A-C632.00015.7417.1238.67616.9508.18410.810
GHDP-130S-635A-C632.00020.58210.21913.96716.9828.20410.845
GHDP-130S-685A-C632.00025.76613.48719.63416.9638.19210.824
GHDP-130S-735A-C632.00031.34416.98225.73116.9438.17910.802

型号
最大扭矩 Nm
6 BAR 非对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0004.2211.1711.3472.0261.2242.378
GHDP-085C-335A-C29.0007.1072.3122.9452.0081.2112.340
GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0005.7081.4121.5123.2661.9593.738
GHDP-085C-385A-C39.0008.8012.6563.2253.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.0005.1481.1751.2023.5382.1604.298
GHDP-085C-385A-C59.0008.2412.4342.9153.5302.1544.281
GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.0007.3751.8642.0214.3152.6205.146
GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.0009.7302.0162.0125.4793.1145.171
GHDP-100C-435A-C118.00013.9323.8094.3405.4743.1105.160
GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.0008.0381.6951.2986.5433.8337.076
GHDP-100C-435A-C218.00011.9773.0133.2576.4243.8177.114
GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00014.8844.0614.6238.1485.02410.216
GHDP-130C-485A-C132.00021.0446.5128.0358.1205.00410.159
GHDP-130C-535A-C132.00027.9399.22511.8548.1245.00710.167
GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00019.5395.1985.82010.0646.05911.664
GHDP-130C-535A-C232.00026.4337.9539.63910.0686.06211.672
GHDP-130C-585A-C232.00034.02310.94713.84310.0826.07311.701
GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00017.1044.4694.94710.8306.75814.097
GHDP-130C-535A-C532.00023.9997.2288.76610.8346.76114.105
GHDP-130C-585A-C532.00031.58810.22112.97010.8496.77214.134
GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.00020.9794.5284.52614.5568.80317.123
GHDP-130C-585A-C632.00028.5687.7198.73014.5708.81317.153
GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






型号最大扭矩 Nm6 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0002.6881.3081.7462.3571.1361.498
GHDP-085S-335A-C29.0004.5262.4643.7552.3361.1231.475
GHDP-085S-385A-C29.0006.4953.6935.9082.3261.1161.464
GHDP-085S-435A-C29.0008.7445.0938.3662.3211.1131.459
GHDP-085S-335A-C39.0003.6351.6401.9903.7971.8112.356
GHDP-085S-385A-C39.0005.6052.8934.1423.7881.8052.345
GHDP-085S-435A-C39.0007.8534.3026.6003.7821.8012.340
GHDP-085S-335A-C59.0003.2781.4061.6004.1202.0162.708
GHDP-085S-385A-C59.0005.2482.6683.7534.1102.0102.698
GHDP-085S-435A-C59.0007.4974.0796.2114.1052.0072.692
GHDP-085S-385A-C69.0004.6962.1482.6525.0212.4383.243
GHDP-085S-435A-C69.0006.9453.5775.1105.0162.4353.238
GHDP-100S-385A-C118.0006.1962.5332.7136.3422.7833.259
GHDP-100S-435A-C118.0008.8724.2775.6386.3362.7793.252
GHDP-100S-485A-C118.00011.8576.1638.8996.3112.7623.225
GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0004.9511.3831.3527.4693.5124.490
GHDP-100S-435A-C218.0007.6273.4784.2777.4633.5084.483
GHDP-100S-485A-C218.00010.6125.3797.5397.4383.4924.456
GHDP-100S-535A-C218.00013.9517.47711.1897.4413.4954.460
GHDP-100S-585A-C218.00017.0658.87013.2647.4413.4954.460
GHDP-100S-535A-C318.00012.8546.2468.5289.1394.3865.400
GHDP-100S-585A-C318.00016.2858.22511.8539.1394.3865.400
GHDP-100S-535A-C418.00011.6845.5717.39410.3635.1516.750
GHDP-100S-585A-C418.00015.1157.55010.71910.3635.1516.750
GHDP-130S-435A-C132.0009.4784.5636.0069.4954.7126.439
GHDP-130S-485A-C132.00013.4027.04110.2959.4624.6916.403
GHDP-130S-535A-C132.00017.7939.79015.0959.4664.6946.407
GHDP-130S-585A-C132.00022.62712.80520.3789.4834.7056.426
GHDP-130S-635A-C132.00027.90516.09326.1489.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.0008.5203.2923.29711.7375.6347.387
GHDP-130S-485A-C232.00012.4435.8887.58611.7045.6127.351
GHDP-130S-535A-C232.00016.8348.67112.38611.7085.6157.356
GHDP-130S-585A-C232.00021.66811.70317.66911.7255.6267.374
GHDP-130S-635A-C232.00026.94615.00123.43911.7575.6467.409
GHDP-130S-685A-C232.00032.60418.52929.62311.7385.6347.388
GHDP-130S-485A-C532.00010.8935.0936.46312.6336.3748.884
GHDP-130S-535A-C532.00015.2847.87811.26312.6386.3778.889
GHDP-130S-585A-C532.00020.11710.90916.54612.6556.3888.908
GHDP-130S-635A-C532.00025.39514.20522.31512.6866.4088.942
GHDP-130S-685A-C532.00031.05317.73228.50012.6686.3968.922
GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00013.3605.5546.07316.9338.17310.792
GHDP-130S-585A-C632.00018.1948.70111.35716.9508.18410.810
GHDP-130S-635A-C632.00023.47212.04417.12616.9828.20410.845
GHDP-130S-685A-C632.00029.13015.59623.31116.9638.19210.824
GHDP-130S-735A-C632.000








型号
最大扭矩 Nm7 BAR 非对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0005.3491.6201.9712.0261.2242.378
GHDP-085C-335A-C29.0008.7212.9463.8392.0081.2112.340
GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0007.3232.0682.4063.2661.9593.738
GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.0006.7631.8432.0963.5382.1604.298
GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.00012.2683.1323.4185.4793.1145.171
GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.00010.3132.3062.3356.4293.8217.125
GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00019.1435.7606.9828.1485.02410.216
GHDP-130C-485A-C132.00026.3398.59710.9688.1205.00410.159
GHDP-130C-535A-C132.00034.38111.75115.4238.1245.00710.167
GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.00017.6374.4204.76710.0926.08011.721
GHDP-130C-485A-C232.00024.8337.3188.75310.0646.05911.664
GHDP-130C-535A-C232.00032.87610.49613.20810.0686.06211.672
GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00022.3996.5937.88010.8306.75814.097
GHDP-130C-535A-C532.00030.4419.77012.33510.8346.76114.105
GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.00027.4217.2548.09514.5568.80317.123
GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






型号
最大扭矩 Nm7 BAR 对称 - 常闭输出扭矩(Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0003.4061.7622.5312.3571.1361.498
GHDP-085S-335A-C29.0005.5543.1064.8792.3361.1231.475
GHDP-085S-385A-C29.0007.8544.5397.3922.3261.1161.464
GHDP-085S-435A-C29.000





GHDP-085S-335A-C39.0004.6632.2983.1143.7971.8112.356
GHDP-085S-385A-C39.0006.9633.7455.6273.7881.8052.345
GHDP-085S-435A-C39.0009.5875.3848.4963.7821.8012.340
GHDP-085S-335A-C59.0004.3072.0722.7244.1202.0162.708
GHDP-085S-385A-C59.0006.6063.5215.2374.1102.0102.698
GHDP-085S-435A-C59.0009.2305.1628.1064.1052.0072.692
GHDP-085S-385A-C69.0006.0553.0154.1365.0212.4383.243
GHDP-085S-435A-C69.0008.6794.6657.0055.0162.4353.238
GHDP-100S-385A-C118.0007.8133.5984.4796.3422.7833.259
GHDP-100S-435A-C118.00010.9365.5837.8936.3362.7793.252
GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0006.5672.7833.1187.4693.5124.490
GHDP-100S-435A-C218.0009.6904.7966.5327.4633.5084.483
GHDP-100S-485A-C218.00013.1766.99110.3427.4383.4924.456
GHDP-100S-535A-C218.00016.5578.57712.7717.4383.4924.456
GHDP-100S-585A-C218.000





GHDP-100S-535A-C318.00015.7777.93211.3609.1394.3865.400
GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.00014.6077.25710.22610.3635.1516.750
GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.00012.1916.2808.9719.4954.7126.439
GHDP-130S-485A-C132.00016.7749.15313.9819.4624.6916.403
GHDP-130S-535A-C132.00021.89612.35019.5809.4664.6946.407
GHDP-130S-585A-C132.00027.53315.86125.7409.4834.7056.426
GHDP-130S-635A-C132.00033.68519.69132.4669.5154.7256.460
GHDP-130S-385A-C232.0007.1261.8271.77411.7455.6397.396
GHDP-130S-435A-C232.00011.2325.1096.26211.7375.6347.387
GHDP-130S-485A-C232.00015.8158.02811.27211.7045.6127.351
GHDP-130S-535A-C232.00020.93711.24616.87111.7085.6157.356
GHDP-130S-585A-C232.00026.57414.76823.03211.7255.6267.374
GHDP-130S-635A-C232.00032.72618.60529.75711.7575.6467.409
GHDP-130S-685A-C232.00039.33022.71836.97511.7385.6347.388
GHDP-130S-485A-C532.00014.2657.23510.14912.6336.3748.884
GHDP-130S-535A-C532.00019.38710.45215.74812.6386.3778.889
GHDP-130S-585A-C532.00025.02313.97321.90812.6556.3888.908
GHDP-130S-635A-C532.00031.17617.80828.63412.6866.4088.942
GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00017.4638.23310.55816.9338.17310.792
GHDP-130S-585A-C632.00023.09911.80916.71916.9508.18410.810
GHDP-130S-635A-C632.00029.25215.67323.44416.9828.20410.845
GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000








型号最大扭矩 Nm
8,5 BAR 对称 - 常闭输出扭矩(Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0007.0412.2872.9092.0261.2242.378
GHDP-085C-335A-C29.000





GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00025.5318.28010.5218.1485.02410.216
GHDP-130C-485A-C132.00034.28111.71215.3678.1205.00410.159
GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.00016.1953.8153.96810.0996.08511.735
GHDP-130C-435A-C232.00024.0266.9978.30610.0926.08011.721
GHDP-130C-485A-C232.00032.77510.45613.15210.0646.05911.664
GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00030.3409.73012.27910.8306.75814.097
GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






型号最大扭矩 Nm
8,5 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0004.4842.4383.7092.3571.1361.498
GHDP-085S-335A-C29.0007.0964.0676.5652.3361.1231.475
GHDP-085S-385A-C29.0009.8915.8079.6192.3261.1161.464
GHDP-085S-435A-C29.000





GHDP-085S-335A-C39.0006.2063.2704.7993.7971.8112.356
GHDP-085S-385A-C39.0009.0005.0187.8543.7881.8052.345
GHDP-085S-435A-C39.000





GHDP-085S-335A-C59.0005.8493.0464.4104.1202.0162.708
GHDP-085S-385A-C59.0008.6434.7957.4644.1102.0102.698
GHDP-085S-435A-C59.000





GHDP-085S-385A-C69.0008.0924.2976.3635.0212.4383.243
GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.00010.2375.1427.1296.3422.7833.259
GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0008.9924.3535.7687.4693.5124.490
GHDP-100S-435A-C218.00012.7856.7469.9157.4633.5084.483
GHDP-100S-485A-C218.00016.5148.55312.7307.4633.5084.483
GHDP-100S-535A-C218.000





GHDP-100S-585A-C218.000





GHDP-100S-535A-C318.000





GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.00016.2608.83113.4199.4954.7126.439
GHDP-130S-485A-C132.00021.83212.31019.5099.4624.6916.403
GHDP-130S-535A-C132.00028.05116.18426.3079.4664.6946.407
GHDP-130S-585A-C132.00034.89120.44133.7849.4834.7056.426
GHDP-130S-635A-C132.000





GHDP-130S-385A-C232.00010.3134.5105.25811.7455.6397.396
GHDP-130S-435A-C232.00015.3017.70410.71011.7375.6347.387
GHDP-130S-485A-C232.00020.87311.20616.80111.7045.6127.351
GHDP-130S-535A-C232.00027.09215.09223.59811.7085.6157.356
GHDP-130S-585A-C232.00033.93219.35631.07511.7255.6267.374
GHDP-130S-635A-C232.000





GHDP-130S-685A-C232.00049.42028.99748.00411.7385.6347.388
GHDP-130S-485A-C532.00019.32310.41215.67712.6336.3748.884
GHDP-130S-535A-C532.00025.54114.29622.47512.6386.3778.889
GHDP-130S-585A-C532.00032.38218.55929.95212.6556.3888.908
GHDP-130S-635A-C532.000





GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00023.61812.13617.28616.9338.17310.792
GHDP-130S-585A-C632.00030.45816.42924.76316.9508.18410.810
GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000






单效常开 - 扭矩图表(起动扭矩)

型号最大扭矩 Nm3 BAR 非对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1371.255530509
GHDP-085C-385A-O29.0003.8361.0151.1292.1071.2072.158
GHDP-085C-435A-O29.0003.8281.0121.1253.0831.9034.046
GHDP-085C-385A-O39.000





GHDP-085C-435A-O39.0006.2431.6331.8052.3071.1251.271
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.0006.7651.8392.0781.997715672
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.0008.2362.2112.4812.5991.0781.034
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.00012.2893.1503.4413.9931.2881.191
GHDP-100C-585A-O218.00012.3103.1583.4525.5972.9604.294
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.000





GHDP-130C-535A-O132.00015.5884.3254.9464.7692.2402.220
GHDP-130C-585A-O132.00015.6154.3364.9606.8793.8176.301
GHDP-130C-635A-O132.00015.6674.3564.9879.1885.48010.767
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.00019.3435.1175.6906.0472.1502.019
GHDP-130C-635A-O232.00019.3945.1375.7178.3564.4336.485
GHDP-130C-685A-O232.00019.3635.1255.70110.8086.21811.229
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.00020.8655.9446.9017.0063.5994.795
GHDP-130C-685A-O532.00020.8355.9326.8859.4595.3949.538
GHDP-130C-735A-O532.00020.8025.9196.86812.0977.28514.641
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.00027.9407.4578.33510.4255.2236.442

型号
最大扭矩 Nm3 BAR 对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4741.442394384
GHDP-085S-385A-O29.0002.3251.1161.4632.4221.1391.456
GHDP-085S-435A-O29.0002.3201.1131.4583.5441.8492.682
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.000





GHDP-085S-435A-O39.0003.7821.8012.3392.653924916
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.000





GHDP-085S-435A-O59.0004.1042.0072.6922.296545526
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.0006.3152.7643.2285.8342.2812.317
GHDP-100S-585A-O118.0006.3272.7733.2427.6793.5114.333
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.0007.4413.4954.4604.589998956
GHDP-100S-585A-O218.0007.4543.5034.4746.4342.6942.972
GHDP-100S-535A-O318.000





GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.000





GHDP-130S-535A-O132.0009.4664.6946.4085.4841.6681.640
GHDP-130S-585A-O132.0009.4834.7056.4267.9093.5544.291
GHDP-130S-635A-O132.0009.5154.7256.46110.5645.2537.193
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.00011.7255.6267.3746.9501.6401.582
GHDP-130S-635A-O232.00011.7575.6467.4099.6054.0404.484
GHDP-130S-685A-O232.00011.7385.6347.38812.4255.8767.566
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.000





GHDP-130S-635A-O532.00012.6866.4088.9428.0553.2223.361
GHDP-130S-685A-O532.00012.6686.3968.92210.8745.0816.443
GHDP-130S-735A-O532.00012.6476.3838.89913.9077.0109.758
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.00016.9428.17910.80111.9844.5894.569



型号
最大扭矩 Nm
3,5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1371.7029121.374
GHDP-085C-385A-O29.0003.8361.0151.1292.6981.6303.301
GHDP-085C-435A-O29.0003.8281.0121.1253.8372.4365.504
GHDP-085C-385A-O39.0006.2511.6371.8101.922577527
GHDP-085C-435A-O39.0006.2431.6331.8053.0611.6862.730
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.0006.7651.8392.0782.7511.4582.130
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.0008.2362.2112.4813.5361.8942.847
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.00010.4602.4102.4884.7372.3152.631
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.00012.2893.1503.4415.3502.7773.816
GHDP-100C-585A-O218.00012.3103.1583.4527.2204.1427.433
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.00015.5814.3234.9424.3241.4591.359
GHDP-130C-535A-O132.00015.5884.3254.9466.5543.5805.672
GHDP-130C-585A-O132.00015.6154.3364.9609.0125.35510.427
GHDP-130C-635A-O132.00015.6674.3564.98711.7027.26415.630
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.00019.3155.1065.6765.7211.5531.390
GHDP-130C-585A-O232.00019.3435.1175.6908.1804.3036.146
GHDP-130C-635A-O232.00019.3945.1375.71710.8696.26211.348
GHDP-130C-685A-O232.00019.3635.1255.70113.7338.31116.887
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.00020.8145.9246.8756.8313.4674.455
GHDP-130C-635A-O532.00020.8655.9446.9019.5205.4399.657
GHDP-130C-685A-O532.00020.8355.9326.88512.3847.48915.197
GHDP-130C-735A-O532.00020.8025.9196.86815.4649.67221.156
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.00027.9737.4708.35310.7125.4406.997
GHDP-130C-735A-O632.00027.9407.4578.33513.7937.70812.956

型号最大扭矩 Nm3,5 BAR 对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4741.956836946
GHDP-085S-385A-O29.0002.3251.1161.4633.1011.5702.198
GHDP-085S-435A-O29.0002.3201.1131.4584.4112.3923.629
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.000





GHDP-085S-435A-O39.0003.7821.8012.3393.5191.5651.863
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.000





GHDP-085S-435A-O59.0004.1042.0072.6923.1631.3291.474
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.0006.3112.7623.2255.4451.9081.891
GHDP-100S-535A-O118.0006.3152.7643.2287.3943.3274.022
GHDP-100S-585A-O118.0006.3272.7733.2429.5444.7046.372
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.0007.4413.4954.4606.1492.5012.661
GHDP-100S-585A-O218.0007.4543.5034.4748.2993.9115.011
GHDP-100S-535A-O318.0008.7364.3865.4005.3782.0311.492
GHDP-100S-585A-O318.0008.7364.3865.4007.3173.1863.494
GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.0009.9065.1516.7506.1832.5112.324
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.0009.4624.6926.4034.9721.1241.080
GHDP-130S-535A-O132.0009.4664.6946.4087.5353.3103.882
GHDP-130S-585A-O132.0009.4834.7056.42610.3625.1256.972
GHDP-130S-635A-O132.0009.5154.7256.46113.4547.07410.352
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.00011.7255.6267.3749.4033.9054.263
GHDP-130S-635A-O232.00011.7575.6467.40912.4955.9227.643
GHDP-130S-685A-O232.00011.7385.6347.38815.7888.01111.242
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.00012.6556.3888.9087.8533.0813.140
GHDP-130S-635A-O532.00012.6866.4088.94210.9455.1266.520
GHDP-130S-685A-O532.00012.6686.3968.92214.2377.21810.119
GHDP-130S-735A-O532.00012.6476.3838.89917.7799.44513.990
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.00016.9628.19210.82312.3144.8344.930
GHDP-130S-735A-O632.00016.9428.17910.80115.8567.1988.802



型号
最大扭矩 Nm4 BAR 非对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1372.1491.2372.239
GHDP-085C-385A-O29.0003.8361.0151.1293.2882.0484.443
GHDP-085C-435A-O29.0003.8281.0121.1254.5912.9686.962
GHDP-085C-385A-O39.0006.2511.6371.8102.5131.2811.669
GHDP-085C-435A-O39.0006.2431.6331.8053.8152.2314.188
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7731.8422.0822.2021.0441.069
GHDP-085C-435A-O59.0006.7651.8392.0783.5052.0083.589
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2702.2252.4983.0251.5141.859
GHDP-085C-485A-O69.0008.2362.2112.4814.4732.5754.660
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5012.4272.5094.1291.5391.455
GHDP-100C-485A-O118.00010.4602.4102.4885.8533.1484.788
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.2843.1483.4384.7702.3402.693
GHDP-100C-535A-O218.00012.2893.1503.4416.7073.7726.441
GHDP-100C-585A-O218.00012.3103.1583.4528.8435.30610.572
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.00016.3174.9285.2867.1543.8596.317
GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.00015.5814.3234.9425.7913.0184.196
GHDP-130C-535A-O132.00015.5884.3254.9468.3384.8719.123
GHDP-130C-585A-O132.00015.6154.3364.96011.1466.87014.554
GHDP-130C-635A-O132.00015.6674.3564.98714.2169.04120.492
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.00019.3155.1065.6767.5063.8004.842
GHDP-130C-585A-O232.00019.3435.1175.69010.3145.86110.273
GHDP-130C-635A-O232.00019.3945.1375.71713.3838.06216.210
GHDP-130C-685A-O232.00019.3635.1255.70116.65910.38422.546
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.00020.7875.9136.8606.1562.9533.151
GHDP-130C-585A-O532.00020.8145.9246.8758.9645.0368.582
GHDP-130C-635A-O532.00020.8655.9446.90112.0347.24014.520
GHDP-130C-685A-O532.00020.8355.9326.88515.3099.56220.855
GHDP-130C-735A-O532.00020.8025.9196.86818.83212.05127.671
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.00028.0037.4828.36910.3625.1766.320
GHDP-130C-685A-O632.00027.9737.4708.35313.6377.59512.656
GHDP-130C-735A-O632.00027.9407.4578.33517.16110.13519.471

型号
最大扭矩 Nm4 BAR 对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4742.4701.1701.508
GHDP-085S-385A-O29.0002.3251.1161.4633.7801.9972.940
GHDP-085S-435A-O29.0002.3201.1131.4585.2782.9344.577
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.0003.7871.8042.3452.8891.1421.174
GHDP-085S-435A-O39.0003.7821.8012.3394.3862.1222.811
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.0004.1102.0102.6972.532796784
GHDP-085S-435A-O59.0004.1042.0072.6924.0301.8952.421
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.0005.0152.4343.2373.4791.3271.321
GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.0006.3362.7793.2524.7461.1651.127
GHDP-100S-485A-O118.0006.3112.7623.2256.7272.8893.293
GHDP-100S-535A-O118.0006.3152.7643.2288.9554.3295.728
GHDP-100S-585A-O118.0006.3272.7733.24211.4105.8828.411
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.0007.4383.4924.4565.4821.9481.932
GHDP-100S-535A-O218.0007.4413.4954.4607.7103.5314.367
GHDP-100S-585A-O218.0007.4543.5034.47410.1655.0977.050
GHDP-100S-535A-O318.0008.7364.3865.4006.7942.8742.954
GHDP-100S-585A-O318.0008.7364.3865.4009.0114.1935.241
GHDP-100S-535A-O418.0009.9065.1516.7505.6602.1991.784
GHDP-100S-585A-O418.0009.9065.1516.7507.8773.5184.071
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.0009.4624.6926.4036.6582.7252.923
GHDP-130S-535A-O132.0009.4664.6946.4089.5874.6326.125
GHDP-130S-585A-O132.0009.4834.7056.42612.8156.6729.653
GHDP-130S-635A-O132.0009.5154.7256.46116.3448.88413.511
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.00011.7085.6157.3568.6283.3703.416
GHDP-130S-585A-O232.00011.7255.6267.37411.8565.5126.945
GHDP-130S-635A-O232.00011.7575.6467.40915.3867.75810.802
GHDP-130S-685A-O232.00011.7385.6347.38819.15110.12714.918
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.00012.6386.3778.8897.0772.3222.293
GHDP-130S-585A-O532.00012.6556.3888.90810.3054.7145.821
GHDP-130S-635A-O532.00012.6866.4088.94213.8356.9649.679
GHDP-130S-685A-O532.00012.6686.3968.92217.6009.33313.795
GHDP-130S-735A-O532.00012.6476.3838.89921.65111.86818.223
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.00016.9818.20410.84411.9124.5124.490
GHDP-130S-685A-O632.00016.9628.19210.82315.6777.0828.606
GHDP-130S-735A-O632.00016.9428.17910.80119.7289.67813.034

型号
最大扭矩 Nm4,5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8871.0351.1552.4791.5132890
GHDP-085C-385A-O29.0003.8521.0211.1373.6192.3244904
GHDP-085C-435A-O29.0003.8361.0151.1294.9173.2487197
GHDP-085C-385A-O39.0003.8281.0121.1253.0361.7172716
GHDP-085C-435A-O39.0006.2511.6371.8104.3352.6405010
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7891.8482.0902.8121.5582321
GHDP-085C-435A-O59.0006.7731.8422.0824.1112.4814614
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2782.2282.5033.6561.9842803
GHDP-085C-485A-O69.0008.2702.2252.4985.1133.0205376
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5112.4312.5145.1362.6463572
GHDP-100C-485A-O118.00010.5012.4272.5096.9973.9306852
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.3243.1643.4596.0813.2985238
GHDP-100C-535A-O218.00012.3243.1643.4598.1444.7228874
GHDP-100C-585A-O218.00012.3243.1643.45910.4096.28512866
GHDP-100C-535A-O318.00014.3904.1724.2287.4574.0686850
GHDP-100C-585A-O318.00014.3904.1724.2289.7225.63210843
GHDP-100C-535A-O418.00016.3174.9285.2866.4273.3575.035
GHDP-100C-585A-O418.00016.3174.9285.2868.6924.9219.027
GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.000





GHDP-130C-535A-O132.000





GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






型号最大扭矩 Nm4,5 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4971.682715741
GHDP-085S-335A-O29.0002.3351.1221.4742.9631.4772062
GHDP-085S-385A-O29.0002.3251.1161.4634.3262.2883468
GHDP-085S-435A-O29.0002.3201.1131.4585.8773.2125070
GHDP-085S-335A-O39.0003.7971.8102.3552.267839571
GHDP-085S-385A-O39.0003.7871.8042.3453.6291.6501977
GHDP-085S-435A-O39.0003.7821.8012.3395.1812.5743578
GHDP-085S-335A-O59.0004.1192.0162.7081.999680294
GHDP-085S-385A-O59.0004.1102.0102.6973.3621.4911700
GHDP-085S-435A-O59.0004.1042.0072.6924.9142.4153302
GHDP-085S-385A-O69.0005.0212.4383.2432.819973466
GHDP-085S-435A-O69.0005.0152.4343.2374.3711.8972067
GHDP-100S-385A-O118.0006.3422.7833.2593.8291.304570
GHDP-100S-435A-O118.0006.3362.7793.2525.6552.3912454
GHDP-100S-485A-O118.0006.3112.7623.2257.7033.6104568
GHDP-100S-535A-O118.0006.3152.7643.2289.9744.9626911
GHDP-100S-585A-O118.0006.3152.7643.22812.4686.4469484
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4834.6471.7911414
GHDP-100S-485A-O218.0007.4383.4924.4566.6953.0103528
GHDP-100S-535A-O218.0007.4413.4954.4608.9664.3625871
GHDP-100S-585A-O218.0007.4543.5034.47411.4605.8468444
GHDP-100S-535A-O318.0008.7364.3865.4008.2103.7174415
GHDP-100S-585A-O318.0008.7364.3865.40010.7045.2016988
GHDP-100S-535A-O418.0009.9065.1516.7507.0763.0423.245
GHDP-100S-585A-O418.0009.9065.1516.7509.5704.5265.818
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.000





GHDP-130S-535A-O132.000





GHDP-130S-585A-O132.000





GHDP-130S-635A-O132.000





GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.000





GHDP-130S-635A-O232.000





GHDP-130S-685A-O232.000





GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.000





GHDP-130S-635A-O532.000





GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000








型号
最大扭矩 Nm
5 BAR 非对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1551.7149211.399
GHDP-085C-335A-O29.0003.8521.0211.1373.0431.8753.969
GHDP-085C-385A-O29.0003.8361.0151.1294.4692.8836.728
GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8103.6942.1443.954
GHDP-085C-435A-O39.0006.2431.6331.8055.3233.3047.105
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7731.8422.0823.3841.9203.354
GHDP-085C-435A-O59.0006.7651.8392.0785.0133.0846.505
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2702.2252.4984.5332.6184.776
GHDP-085C-485A-O69.0008.2362.2112.4816.3483.9128.286
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5012.4272.5095.9243.2014.926
GHDP-100C-485A-O118.00010.4602.4102.4888.0834.7639.103
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.2843.1483.4387.0003.9847.008
GHDP-100C-535A-O218.00012.2893.1503.4419.4225.71711.692
GHDP-100C-585A-O218.00012.3103.1583.45211.9477.34715.577
GHDP-100C-535A-O318.00014.3904.1724.2288.7444.9569.118
GHDP-100C-585A-O318.00014.3904.1724.22811.2606.69313.554
GHDP-100C-535A-O418.00016.3174.9285.2867.7144.2457.302
GHDP-100C-585A-O418.00016.3174.9285.28610.2305.98211.738
GHDP-130C-435A-O132.00015.6344.3434.9705.8843.0884.377
GHDP-130C-485A-O132.00015.5814.3234.9428.7245.1489.869
GHDP-130C-535A-O132.00015.5884.3254.94611.9077.40916.027
GHDP-130C-585A-O132.00015.6154.3364.96015.4139.88522.808
GHDP-130C-635A-O132.00015.6674.3564.98719.24312.58530.217
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.00019.3085.1035.6727.8914.0895.587
GHDP-130C-535A-O232.00019.3155.1065.67611.0756.41011.745
GHDP-130C-585A-O232.00019.3435.1175.69014.5818.91218.526
GHDP-130C-635A-O232.00019.3945.1375.71718.41111.62325.936
GHDP-130C-685A-O232.00019.3635.1255.70122.50914.51533.863
GHDP-130C-485A-O532.00020.7805.9116.8576.5423.2493.897
GHDP-130C-535A-O532.00020.7875.9136.8609.7255.58610.054
GHDP-130C-585A-O532.00020.8145.9246.87513.2318.09116.836
GHDP-130C-635A-O532.00020.8655.9446.90117.06110.80124.245
GHDP-130C-685A-O532.00020.8355.9326.88521.16013.69232.172
GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.3288.0532.0911.854
GHDP-130C-585A-O632.00027.9527.4628.34211.5596.0728.636
GHDP-130C-635A-O632.00028.0037.4828.36915.3908.86216.045
GHDP-130C-685A-O632.00027.9737.4708.35319.48811.79423.972
GHDP-130C-735A-O632.00027.9407.4578.33523.89614.91932.500

型号
最大扭矩 Nm5 BAR 对称 - 常开输出扭矩t (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4971.971845962
GHDP-085S-335A-O29.0002.3351.1221.4743.4991.8202.632
GHDP-085S-385A-O29.0002.3251.1161.4635.1382.8474.425
GHDP-085S-435A-O29.0002.3201.1131.4587.0114.0146.472
GHDP-085S-335A-O39.0003.7971.8102.3552.607876866
GHDP-085S-385A-O39.0003.7871.8042.3454.2472.0332.659
GHDP-085S-435A-O39.0003.7821.8012.3396.1203.2174.706
GHDP-085S-335A-O59.0004.1192.0162.7082.251497477
GHDP-085S-385A-O59.0004.1102.0102.6973.8901.8052.269
GHDP-085S-435A-O59.0004.1042.0072.6925.7642.9934.316
GHDP-085S-385A-O69.0005.0212.4383.2433.3391.1781.168
GHDP-085S-435A-O69.0005.0152.4343.2375.2122.4793.216
GHDP-100S-385A-O118.0006.3422.7833.2594.580988946
GHDP-100S-435A-O118.0006.3362.7793.2526.8092.9443.382
GHDP-100S-485A-O118.0006.3112.7623.2259.2924.5446.096
GHDP-100S-535A-O118.0006.3152.7643.22812.0766.3019.139
GHDP-100S-585A-O118.0006.3152.7643.22814.1617.45411.231
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4835.5642.0352.021
GHDP-100S-485A-O218.0007.4383.4924.4568.0473.7484.735
GHDP-100S-535A-O218.0007.4413.4954.46010.8315.5177.778
GHDP-100S-585A-O218.0007.4543.5034.47413.8967.44311.129
GHDP-100S-535A-O318.0008.7364.3865.4009.6264.5605.876
GHDP-100S-585A-O318.0008.7364.3865.40012.3976.2098.735
GHDP-100S-535A-O418.0009.9065.1516.7508.4923.8854.706
GHDP-100S-585A-O418.0009.9065.1516.75011.2635.5347.565
GHDP-130S-435A-O132.0009.4954.7126.4396.7662.7983.041
GHDP-130S-485A-O132.0009.4624.6926.40310.0304.9146.609
GHDP-130S-535A-O132.0009.4664.6946.40813.6907.22210.610
GHDP-130S-585A-O132.0009.4834.7056.42617.7219.74415.015
GHDP-130S-635A-O132.0009.5154.7256.46122.12412.49219.829
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.00011.7045.6127.3519.0713.6793.901
GHDP-130S-535A-O232.00011.7085.6157.35612.7316.0737.901
GHDP-130S-585A-O232.00011.7255.6267.37416.7628.62612.307
GHDP-130S-635A-O232.00011.7575.6467.40921.16611.38917.121
GHDP-130S-685A-O232.00011.7385.6347.38825.87814.33422.271
GHDP-130S-485A-O532.00012.6336.3748.8847.5212.7942.777
GHDP-130S-535A-O532.00012.6386.3778.88911.1815.2776.778
GHDP-130S-585A-O532.00012.6556.3888.90815.2117.83211.184
GHDP-130S-635A-O532.00012.6866.4088.94219.61510.59515.997
GHDP-130S-685A-O532.00012.6686.3968.92224.32713.53921.147
GHDP-130S-735A-O532.00012.6476.3838.89929.39516.70026.688
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.00016.9508.18410.81013.2885.5065.995
GHDP-130S-635A-O632.00016.9818.20410.84417.6928.38010.809
GHDP-130S-685A-O632.00016.9628.19210.82322.40411.37015.959
GHDP-130S-735A-O632.00016.9428.17910.80127.47214.55721.499



型号
最大扭矩 Nm5,5 BAR 非对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.0271.1492.003
GHDP-085C-335A-O29.0003.8521.0211.1373.4902.1914.834
GHDP-085C-385A-O29.0003.8361.0151.1295.0603.2997.870
GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8104.2842.5675.096
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0902.4051.2001.460
GHDP-085C-385A-O59.0006.7731.8422.0823.9742.3454.497
GHDP-085C-435A-O59.0006.7651.8392.0785.7673.6187.964
GHDP-085C-385A-O69.0008.2782.2282.5033.4951.8642.767
GHDP-085C-435A-O69.0008.2702.2252.4985.2873.1596.235
GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5144.6882.2772.536
GHDP-100C-435A-O118.00010.5012.4272.5096.8213.8546.662
GHDP-100C-485A-O118.00010.4602.4102.4889.1995.55911.261
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.00012.3243.1643.4595.7383.0644.567
GHDP-100C-485A-O218.00012.2843.1483.4388.1164.7869.166
GHDP-100C-535A-O218.00012.2423.4763.52410.7176.49813.408
GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.00014.3904.1724.22810.0305.84411.385
GHDP-100C-585A-O318.00014.3904.1724.22812.7987.75516.265
GHDP-100C-535A-O418.00016.3174.9285.2869.0005.1339.570
GHDP-100C-585A-O418.00016.3174.9285.28611.7687.04414.449
GHDP-130C-435A-O132.00015.6344.3434.9707.0643.9516.659
GHDP-130C-485A-O132.00015.5814.3234.94210.1906.19212.706
GHDP-130C-535A-O132.00015.5884.3254.94613.6918.67119.478
GHDP-130C-585A-O132.00015.6154.3364.96017.54611.39026.935
GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.00019.3615.1245.7006.2322.4912.377
GHDP-130C-485A-O232.00019.3085.1035.6729.3585.1678.424
GHDP-130C-535A-O232.00019.3155.1065.67612.8597.68915.196
GHDP-130C-585A-O232.00019.3435.1175.69016.71410.42322.653
GHDP-130C-635A-O232.00019.3945.1375.71720.92513.39730.798
GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.8578.0084.3406.733
GHDP-130C-535A-O532.00020.7875.9136.86011.5106.86713.506
GHDP-130C-585A-O532.00020.8145.9246.87515.3659.60220.963
GHDP-130C-635A-O532.00020.8655.9446.90119.57512.57529.108
GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.3289.8384.7755.306
GHDP-130C-585A-O632.00027.9527.4628.34213.6937.63512.763
GHDP-130C-635A-O632.00028.0037.4828.36917.90410.66720.908
GHDP-130C-685A-O632.00027.9737.4708.35322.41313.86929.631
GHDP-130C-735A-O632.000






型号
最大扭矩 Nm
5,5 BAR 对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4972.3301.0791.355
GHDP-085S-335A-O29.0002.3351.1221.4744.0132.1433.194
GHDP-085S-385A-O29.0002.3251.1161.4635.8173.2705.167
GHDP-085S-435A-O29.0002.3201.1131.4587.8784.5547.420
GHDP-085S-335A-O39.0003.7971.8102.3553.1211.3011.428
GHDP-085S-385A-O39.0003.7871.8042.3454.9262.4653.401
GHDP-085S-435A-O39.0003.7821.8012.3396.9873.7605.654
GHDP-085S-335A-O59.0004.1192.0162.7082.7651.0441.038
GHDP-085S-385A-O59.0004.1102.0102.6974.5692.2393.011
GHDP-085S-435A-O59.0004.1042.0072.6926.6303.5375.264
GHDP-085S-385A-O69.0005.0212.4383.2434.0181.7041.911
GHDP-085S-435A-O69.0005.0152.4343.2376.0793.0314.163
GHDP-100S-385A-O118.0006.3422.7833.2595.3881.8481.829
GHDP-100S-435A-O118.0006.3362.7793.2527.8413.6164.510
GHDP-100S-485A-O118.0006.3112.7623.22510.5745.3557.498
GHDP-100S-535A-O118.0006.3152.7643.22813.6367.28010.844
GHDP-100S-585A-O118.0006.3152.7643.22815.8558.46212.978
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4836.5962.8023.149
GHDP-100S-485A-O218.0007.4383.4924.4569.3294.5676.137
GHDP-100S-535A-O218.0007.4413.4954.46012.3916.4999.484
GHDP-100S-585A-O218.0007.4413.4954.46014.8477.86211.938
GHDP-100S-535A-O318.0008.7364.3865.40011.0435.4037.337
GHDP-100S-585A-O318.0008.7364.3865.40014.0917.21710.482
GHDP-100S-535A-O418.0009.9065.1516.7509.9094.7286.167
GHDP-100S-585A-O418.0009.9065.1516.75012.9576.5429.312
GHDP-130S-435A-O132.0009.4954.7126.4398.1223.6924.524
GHDP-130S-485A-O132.0009.4624.6926.40311.7165.9808.452
GHDP-130S-535A-O132.0009.4664.6946.40815.7418.50712.852
GHDP-130S-585A-O132.0009.4834.7056.42620.17411.27517.697
GHDP-130S-635A-O132.0009.5154.7256.46125.01514.29322.988
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.00011.7375.6337.3877.1631.8671.815
GHDP-130S-485A-O232.00011.7045.6127.35110.7574.8005.743
GHDP-130S-535A-O232.00011.7085.6157.35614.7837.37610.144
GHDP-130S-585A-O232.00011.7255.6267.37419.21510.16714.988
GHDP-130S-635A-O232.00011.7575.6467.40924.05613.19620.280
GHDP-130S-685A-O232.00011.7385.6347.38829.24116.43225.947
GHDP-130S-485A-O532.00012.6336.3748.8849.2073.9984.620
GHDP-130S-535A-O532.00012.6386.3778.88913.2326.5839.020
GHDP-130S-585A-O532.00012.6556.3888.90817.6649.37313.865
GHDP-130S-635A-O532.00012.6866.4088.94222.50512.40219.156
GHDP-130S-685A-O532.00012.6686.3968.92227.69015.63724.824
GHDP-130S-735A-O532.00012.6476.3838.89933.26819.11130.920
GHDP-130S-535A-O632.00016.9338.17310.79111.3093.8713.832
GHDP-130S-585A-O632.00016.9508.18410.81015.7417.1248.676
GHDP-130S-635A-O632.00016.9818.20410.84420.58210.21913.968
GHDP-130S-685A-O632.00016.9628.19210.82325.76713.48719.635
GHDP-130S-735A-O632.00016.9428.17910.80131.34416.98325.732

型号
最大扭矩 Nm6 BAR 非对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.3391.3742.607
GHDP-085C-335A-O29.0003.8521.0211.1373.9382.5075.699
GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8104.8752.9866.239
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0902.8521.5332.325
GHDP-085C-385A-O59.0006.7731.8422.0824.5652.7665.639
GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.0008.2782.2282.5034.0852.2953.910
GHDP-085C-435A-O69.0008.2702.2252.4986.0413.6957.693
GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5145.3912.8073.895
GHDP-100C-435A-O118.00010.5012.4272.5097.7184.5018.397
GHDP-100C-485A-O118.00010.4602.4102.48810.3146.35013.418
GHDP-100C-385A-O218.00012.3343.1683.4644.3081.8671.800
GHDP-100C-435A-O218.00012.3243.1643.4596.6363.7206.303
GHDP-100C-485A-O218.00012.2843.1483.4389.2315.58211.323
GHDP-100C-535A-O218.00012.2423.4763.52412.0037.38615.676
GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.00014.3904.1724.22811.3166.73213.653
GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.00016.3174.9285.28610.2866.02111.837
GHDP-100C-585A-O418.00016.3174.9285.28613.3068.10617.160
GHDP-130C-435A-O132.00015.6344.3434.9708.2444.8038.941
GHDP-130C-485A-O132.00015.5814.3234.94211.6567.23215.542
GHDP-130C-535A-O132.00015.5884.3254.94615.4769.93022.930
GHDP-130C-585A-O132.00015.6154.3364.96019.68012.89231.062
GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.00019.3615.1245.7007.4123.7294.659
GHDP-130C-485A-O232.00019.3085.1035.67210.8246.22911.260
GHDP-130C-535A-O232.00019.3155.1065.67614.6438.95618.648
GHDP-130C-585A-O232.00019.3435.1175.69018.84811.93226.780
GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.8579.4755.4069.570
GHDP-130C-535A-O532.00020.7875.9136.86013.2948.13516.957
GHDP-130C-585A-O532.00020.8145.9246.87517.49811.11025.090
GHDP-130C-635A-O532.00020.8655.9446.90122.08914.34733.970
GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32811.6226.1198.758
GHDP-130C-585A-O632.00027.9527.4628.34215.8269.17716.890
GHDP-130C-635A-O632.00028.0037.4828.36920.41712.45425.770
GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






型号最大扭矩 Nm6 BAR 对称 - 常闭输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4972.6891.3091.747
GHDP-085S-335A-O29.0002.3351.1221.4744.5272.4653.756
GHDP-085S-385A-O29.0002.3251.1161.4636.4963.6945.909
GHDP-085S-435A-O29.0002.3201.1131.4588.7455.0948.367
GHDP-085S-335A-O39.0003.7971.8102.3553.6361.6401.990
GHDP-085S-385A-O39.0003.7871.8042.3455.6052.8934.143
GHDP-085S-435A-O39.0003.7821.8012.3397.8544.3026.601
GHDP-085S-335A-O59.0004.1192.0162.7083.2791.4061.600
GHDP-085S-385A-O59.0004.1102.0102.6975.2492.6683.753
GHDP-085S-435A-O59.0004.1042.0072.6927.4974.0796.211
GHDP-085S-385A-O69.0005.0212.4383.2434.6972.1492.653
GHDP-085S-435A-O69.0005.0152.4343.2376.9463.5785.111
GHDP-100S-385A-O118.0006.3422.7833.2596.1962.5332.713
GHDP-100S-435A-O118.0006.3362.7793.2528.8724.2775.638
GHDP-100S-485A-O118.0006.3112.7623.22511.8576.1638.899
GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4904.9511.3831.352
GHDP-100S-435A-O218.0007.4633.5084.4837.6273.4784.277
GHDP-100S-485A-O218.0007.4383.4924.45610.6125.3797.539
GHDP-100S-535A-O218.0007.4413.4954.46013.9517.47711.189
GHDP-100S-585A-O218.0007.4413.4954.46016.5408.87013.685
GHDP-100S-535A-O318.0008.7364.3865.40012.4596.2468.798
GHDP-100S-585A-O318.0008.7364.3865.40015.7848.22512.229
GHDP-100S-535A-O418.0009.9065.1516.75011.3255.5717.628
GHDP-100S-585A-O418.0009.9065.1516.75014.6507.55011.059
GHDP-130S-435A-O132.0009.4954.7126.4399.4784.5636.006
GHDP-130S-485A-O132.0009.4624.6926.40313.4027.04110.295
GHDP-130S-535A-O132.0009.4664.6946.40817.7939.78915.094
GHDP-130S-585A-O132.0009.4834.7056.42622.62612.80520.378
GHDP-130S-635A-O132.0009.5154.7256.46127.90516.09326.147
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.00011.7375.6337.3878.5203.2923.298
GHDP-130S-485A-O232.00011.7045.6127.35112.4435.8887.586
GHDP-130S-535A-O232.00011.7085.6157.35616.8348.67112.386
GHDP-130S-585A-O232.00011.7255.6267.37421.66811.70417.669
GHDP-130S-635A-O232.00011.7575.6467.40926.94615.00123.439
GHDP-130S-685A-O232.00011.7385.6347.38832.60418.52929.623
GHDP-130S-485A-O532.00012.6336.3748.88410.8935.0936.463
GHDP-130S-535A-O532.00012.6386.3778.88915.2847.87811.263
GHDP-130S-585A-O532.00012.6556.3888.90820.11710.90916.546
GHDP-130S-635A-O532.00012.6866.4088.94225.39514.20522.316
GHDP-130S-685A-O532.00012.6686.3968.92231.05317.73228.500
GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79113.3605.5556.074
GHDP-130S-585A-O632.00016.9508.18410.81018.1948.70111.357
GHDP-130S-635A-O632.00016.9818.20410.84423.47212.04517.127
GHDP-130S-685A-O632.00016.9628.19210.82329.13015.59623.311
GHDP-130S-735A-O632.000








型号
最大扭矩 Nm7 BAR 非对称 - 常开输出扭矩  (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.9641.8193.816
GHDP-085C-335A-O29.0003.8521.0211.1374.8323.1387.429
GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8106.0563.8228.524
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0903.7462.1814.055
GHDP-085C-385A-O59.0006.7731.8422.0825.7463.6037.924
GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.0008.2782.2282.5035.2673.1446.195
GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5146.7973.8366.614
GHDP-100C-435A-O118.00010.5012.4272.5099.5135.78211.869
GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.00012.3343.1683.4645.7143.0464.519
GHDP-100C-435A-O218.00012.3243.1643.4598.4305.0129.774
GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.000





GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.00016.3174.9285.28612.8597.79716.372
GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.00015.6344.3434.97010.6036.48513.505
GHDP-130C-485A-O132.00015.5814.3234.94214.5899.30521.215
GHDP-130C-535A-O132.00015.5884.3254.94619.04512.44529.833
GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.00019.3755.1295.7076.2002.4312.315
GHDP-130C-435A-O232.00019.3615.1245.7009.7715.4689.223
GHDP-130C-485A-O232.00019.3085.1035.67213.7578.32816.934
GHDP-130C-535A-O232.00019.3155.1065.67618.21211.48325.551
GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.85712.4087.50615.243
GHDP-130C-535A-O532.00020.7875.9136.86016.86310.66123.861
GHDP-130C-585A-O532.00020.8145.9246.87521.76514.11933.344
GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32815.1918.71915.661
GHDP-130C-585A-O632.00027.9527.4628.34220.09312.22425.144
GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






型号
最大扭矩 Nm7 BAR 非对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4973.4071.7632.533
GHDP-085S-335A-O29.0002.3351.1221.4745.5553.1074.880
GHDP-085S-385A-O29.0002.3251.1161.4637.8554.5397.394
GHDP-085S-435A-O29.000





GHDP-085S-335A-O39.0003.7971.8102.3554.6642.2993.114
GHDP-085S-385A-O39.0003.7871.8042.3456.9633.7455.628
GHDP-085S-435A-O39.0003.7821.8012.3399.5885.3848.496
GHDP-085S-335A-O59.0004.1192.0162.7084.3072.0722.724
GHDP-085S-385A-O59.0004.1102.0102.6976.6073.5225.238
GHDP-085S-435A-O59.0004.1042.0072.6929.2315.1628.106
GHDP-085S-385A-O69.0005.0212.4383.2436.0553.0164.137
GHDP-085S-435A-O69.0005.0152.4343.2378.6804.6667.006
GHDP-100S-385A-O118.0006.3422.7833.2597.8133.5984.479
GHDP-100S-435A-O118.0006.3362.7793.25210.9365.5837.893
GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4906.5672.7833.118
GHDP-100S-435A-O218.0007.4633.5084.4839.6904.7966.532
GHDP-100S-485A-O218.0007.4383.4924.45613.1766.99110.342
GHDP-100S-535A-O218.000





GHDP-100S-585A-O218.000





GHDP-100S-535A-O318.0008.7364.3865.40015.2917.93211.721
GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.0009.9065.1516.75014.1577.25710.551
GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.0009.4954.7126.43912.1916.2808.971
GHDP-130S-485A-O132.0009.4624.6926.40316.7749.15213.981
GHDP-130S-535A-O132.0009.4664.6946.40821.89612.35019.579
GHDP-130S-585A-O132.0009.4834.7056.42627.53215.86125.740
GHDP-130S-635A-O132.0009.5154.7256.46133.68519.69132.466
GHDP-130S-385A-O232.00011.7455.6397.3967.1261.8271.775
GHDP-130S-435A-O232.00011.7375.6337.38711.2325.1096.263
GHDP-130S-485A-O232.00011.7045.6127.35115.8158.02911.272
GHDP-130S-535A-O232.00011.7085.6157.35620.93711.24616.871
GHDP-130S-585A-O232.00011.7255.6267.37426.57414.76923.032
GHDP-130S-635A-O232.00011.7575.6467.40932.72718.60629.757
GHDP-130S-685A-O232.00011.7385.6347.38839.33022.71836.976
GHDP-130S-485A-O532.00012.6336.3748.88414.2657.23610.149
GHDP-130S-535A-O532.00012.6386.3778.88919.38710.45215.748
GHDP-130S-585A-O532.00012.6556.3888.90825.02313.97321.908
GHDP-130S-635A-O532.00012.6866.4088.94231.17617.80828.634
GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79117.4648.23410.559
GHDP-130S-585A-O632.00016.9508.18410.81023.10011.81016.720
GHDP-130S-635A-O632.00016.9818.20410.84429.25315.67323.445
GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000








型号
最大扭矩 Nm8,5 BAR 对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1553.9012.4825.629
GHDP-085C-335A-O29.000





GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.000





GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0905.0883.1376.650
GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5148.9055.35010.693
GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.00012.3343.1683.4647.8224.5768.598
GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.000





GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.00015.6344.3434.97014.1428.98920.350
GHDP-130C-485A-O132.00015.5814.3234.94218.98912.40629.725
GHDP-130C-535A-O132.000





GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.00019.3755.1295.7078.9724.8857.677
GHDP-130C-435A-O232.00019.3615.1245.70013.3108.00916.069
GHDP-130C-485A-O232.00019.3085.1035.67218.15611.44325.443
GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.85716.80710.62123.753
GHDP-130C-535A-O532.00020.7875.9136.86022.21614.43734.216
GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32820.54412.54426.016
GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






型号
最大扭矩 Nm8,5 BAR 非对称 - 常开输出扭矩 (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4974.4852.4393.710
GHDP-085S-335A-O29.0002.3351.1221.4747.0984.0686.566
GHDP-085S-385A-O29.0002.3251.1161.4639.8925.8079.620
GHDP-085S-435A-O29.000





GHDP-085S-335A-O39.0003.7971.8102.3556.2063.2714.800
GHDP-085S-385A-O39.0003.7871.8042.3459.0005.0187.854
GHDP-085S-435A-O39.000





GHDP-085S-335A-O59.0004.1192.0162.7085.8503.0474.410
GHDP-085S-385A-O59.0004.1102.0102.6978.6444.7967.465
GHDP-085S-435A-O59.000





GHDP-085S-385A-O69.0005.0212.4383.2438.0934.2986.364
GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.0006.3422.7833.25910.2375.1427.129
GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4908.9924.3535.768
GHDP-100S-435A-O218.0007.4633.5084.48312.7856.7469.915
GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.000





GHDP-100S-585A-O218.000





GHDP-100S-535A-O318.000





GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.0009.4954.7126.43916.2608.83113.419
GHDP-130S-485A-O132.0009.4624.6926.40321.83212.31019.509
GHDP-130S-535A-O132.0009.4664.6946.40828.05116.18326.307
GHDP-130S-585A-O132.0009.4834.7056.42634.89120.44133.784
GHDP-130S-635A-O132.000





GHDP-130S-385A-O232.00011.7455.6397.39610.3144.5105.258
GHDP-130S-435A-O232.00011.7375.6337.38715.3017.70410.710
GHDP-130S-485A-O232.00011.7045.6127.35120.87311.20616.801
GHDP-130S-535A-O232.00011.7085.6157.35627.09215.09223.598
GHDP-130S-585A-O232.00011.7255.6267.37433.93319.35731.075
GHDP-130S-635A-O232.000





GHDP-130S-685A-O232.00011.7385.6347.38849.42028.99748.004
GHDP-130S-485A-O532.00012.6336.3748.88419.32310.41215.677
GHDP-130S-535A-O532.00012.6386.3778.88925.54114.29622.475
GHDP-130S-585A-O532.00012.6556.3888.90832.38218.55929.952
GHDP-130S-635A-O532.000





GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79123.61812.13717.286
GHDP-130S-585A-O632.00016.9508.18410.81030.45916.42924.763
GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000






ACTUATECH涂装作业
重载执行器(ACTUATECH标准)的涂装如图所述,完工后的产品可安装在外部环境中,包括:化学设施、煤气管、炼化厂和离岸应用领域。我司亦提供客户定制涂装。


表面准备
 SA 2.1/2等级喷砂
涂刷
油漆类型
厚度
第一层无机富锌底漆
 75 µ
中间层
环氧树脂
110 µ
最末层
聚氨酯
40 µ

整体厚度
 225 µ
标准涂装:RAL

中央阀体 - 可用配置

不对称设计

开启起动扭矩(BTO)极高,造成开启操作最终阶段(ETO)的输出扭矩骤降。闭合启动扭矩(BTC)低于开启起动扭矩(BTO)。

对称设计
扭矩期限更为均衡,BTO-ETO和BTC-ETC数值相近。

有关详情请查阅ACTUATECH附件产品目录。


液压筒
油槽
止回阀
安全阀

液压紧急手动控制装置

用于单效执行器的可拆卸式紧急手动控制装置

连接器 - 接头

执行器的连接端设计符合最新的国际标准,方便其连接阀门和附件。ACTUATECH通过组装套件、连接器和选装接头来完善自己的服务。

模块化构造设计

ACTUATECH重载执行器的模块化设计可以赋予产品更完善的多用途应用。
此外,模块化构造还可以帮助用户按照应用领域的需求进行组件装配。
